EFV-8 Club Forum / General Ford Discussion / 39 Ford 1/2 Ton Pickup overall exterior dimensions

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: 39 Ford 1/2 Ton Pickup overall exterior dimensions -- page: 1 2

39DLXE All Orig

12-28-2018 @ 12:39 PM

reply profile send p.m.

Member
Posts: 19
Joined: Jun 2014

Hello:
Haven't had chance to get back to EFV8 Club for a while!
Does anyone have overall exterior body dimensions - L (bumper to bumper) x H x W for above listed Ford Pickup (85 Hp). Also any inf for inside box L x W x H dimension? Looking a t possible purchase. Would like to clarify for space in garage next to 39 Deluxe Tudor.
Also posted in 'General Truck Discussion.'
Thanks
John

This message was edited by 39DLXE All Orig on 12-30-18 @ 9:03 AM

40 Coupe

12-29-2018 @ 4:26 AM

reply profile send p.m.

Senior
Posts: 1800
Joined: Oct 2009

No rear bumper Ford list for the 112" wheel base pick up OAL=186.76" you may have to add for the tail light.
71.45" T & 72.14" W
Load space:
77.75" L, 46" W, height to the top of the flareboards= 20.16"

39DLXE All Orig

12-30-2018 @ 9:00 AM

reply profile send p.m.

Member
Posts: 19
Joined: Jun 2014

40 Coupe:

Thanks for the information.

John

39DLXE All Orig

01-18-2019 @ 12:13 PM

reply profile send p.m.

Member
Posts: 19
Joined: Jun 2014

Hello 40 Coupe:

Thanks again for information.

I do have a quick question, Does speedometer cable on this truck attach to transmission, one of front wheels, or elsewhere. Posted also on Truck Discussion.
Thanks,

John

This message was edited by 39DLXE All Orig on 1-18-19 @ 12:14 PM

trjford8

01-18-2019 @ 2:02 PM

reply profile send p.m.

Senior
Posts: 4352
Joined: Oct 2009

The speedometer cable attaches to the drive shaft right next to where it joins the back of the transmission.

cpipp01@aol.com

01-18-2019 @ 2:14 PM

reply profile send p.m.

New Member
Posts: 152
Joined: Oct 2009

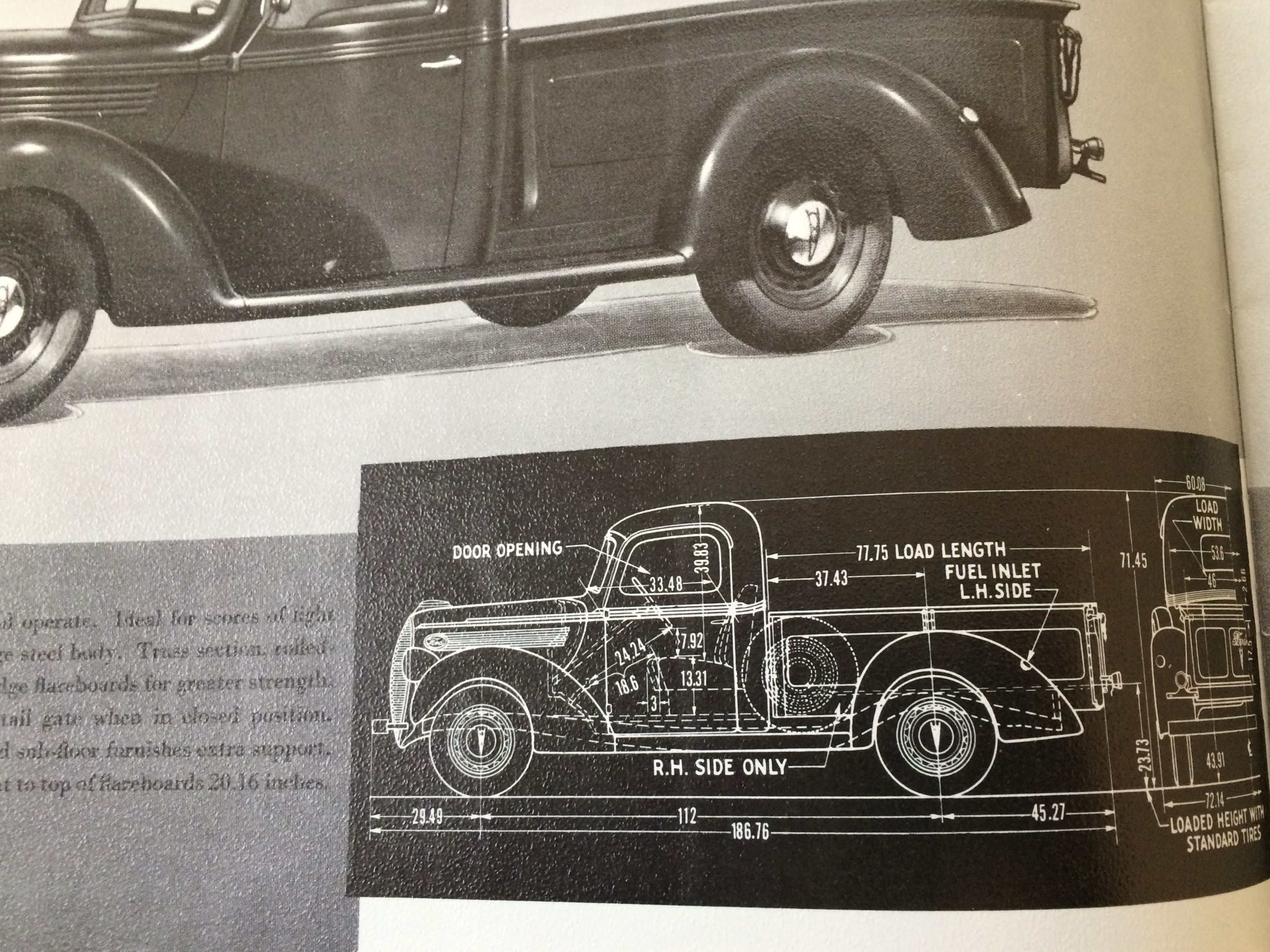

See attached

cpipp01@aol.com

01-18-2019 @ 2:18 PM

reply profile send p.m.

New Member
Posts: 152
Joined: Oct 2009

See attached

39DLXE All Orig

01-19-2019 @ 7:35 AM

reply profile send p.m.

Member
Posts: 19
Joined: Jun 2014

Hello trjford8

Thanks, I appreciated the information.

John

39DLXE All Orig

01-19-2019 @ 7:45 AM

reply profile send p.m.

Member
Posts: 19
Joined: Jun 2014

triford8, is that drive shaft a closed torque tube like the Tudor?

John

39DLXE All Orig

01-19-2019 @ 7:47 AM

reply profile send p.m.

Member
Posts: 19
Joined: Jun 2014

Hello cpipp01@aol.com:

And a 'Thank you' to you also for the dimensional information. Is that a reference publication you have? Looks like a lot of info there.

John

This message was edited by 39DLXE All Orig on 1-19-19 @ 7:48 AM
