EFV-8 Club Forum / General Ford Discussion / '36 dash light switch?

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: '36 dash light switch? -- page: 1 2 3

flatfoot

09-23-2020 @ 2:58 PM

reply profile send p.m.

Member
Posts: 286
Joined: Mar 2011

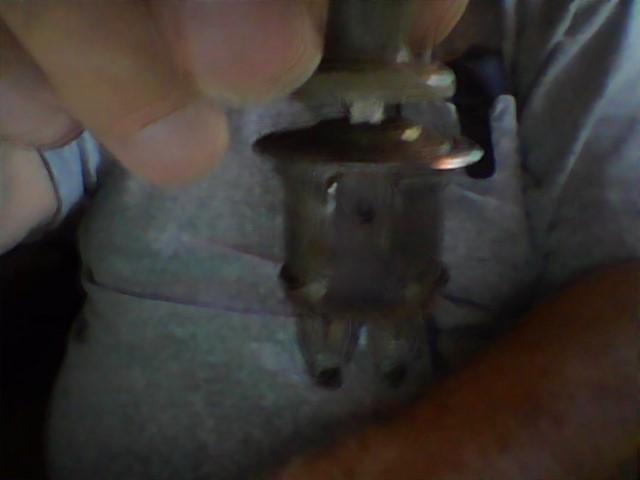

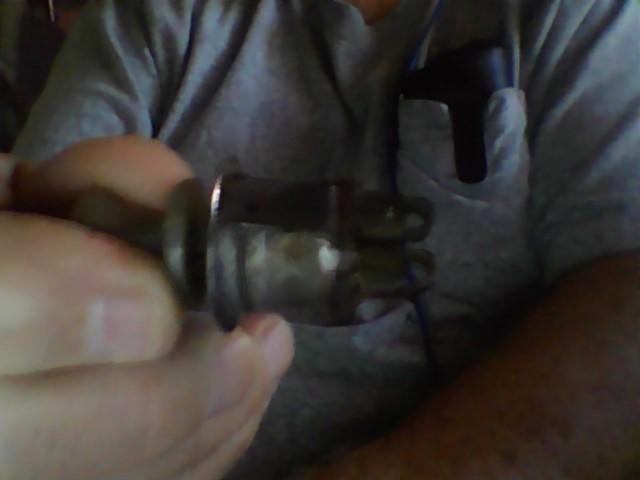

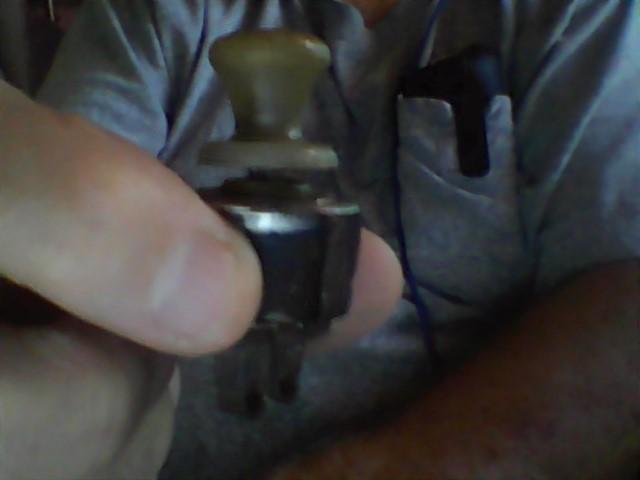

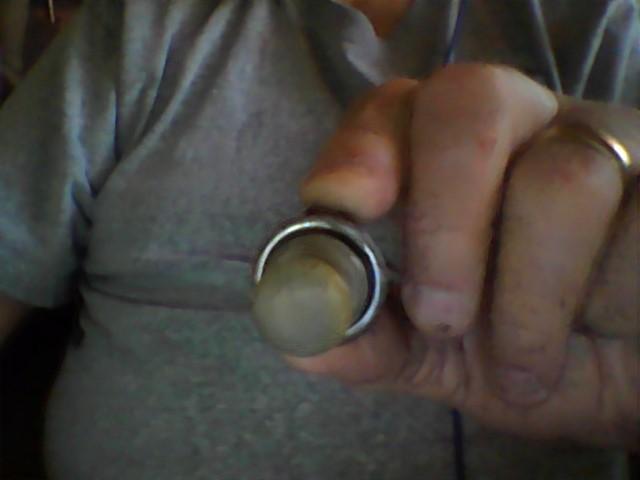

Does anyone know where I can purchase a switch fir my dash lights? My,36 original is 6 volts. I have added some photos for ya all. Thank you again.

This message was edited by flatfoot on 9-28-20 @ 4:00 PM

40 Coupe

09-24-2020 @ 4:39 AM

reply profile send p.m.

Senior
Posts: 1801
Joined: Oct 2009

You may want to post this in the wanted section. Do you have a switch that is not working, or missing? There is a difference between the Standard and Dlx dash knob color, but the knob can be changed.

fortyford

09-24-2020 @ 8:47 AM

reply profile send p.m.

Member
Posts: 224
Joined: Nov 2009

Flatfoot,there is an original on ebay for sale now.I think for $20 I am not sure if this is what your looking for?Do you have a part #?
https://www.ebay.com/itm/1934-1935-1936-1937-ford-light-switch-original/113805899823?hash=item1a7f5c382f:g:B7cAAOSwYF9bS5tE

This message was edited by fortyford on 9-24-20 @ 9:51 AM

flatfoot

09-24-2020 @ 10:44 AM

reply profile send p.m.

Member
Posts: 286
Joined: Mar 2011

The switch does not work. It is the original one. The suppliers I know do not have it. I can get the knobs, but not the entire switch. Thanks for your response.

flatfoot

09-24-2020 @ 10:47 AM

reply profile send p.m.

Member
Posts: 286
Joined: Mar 2011

No, the switch on E-Bay is for a different year model. I do not know the Part Number. Thanks for your response.

fortyford

09-24-2020 @ 11:55 AM

reply profile send p.m.

Member
Posts: 224
Joined: Nov 2009

flatfoot, you may post in the wanted section on here and the Ford Barn and by chance locate one.

pinnsky

09-24-2020 @ 1:02 PM

reply profile send p.m.

New Member
Posts: 103
Joined: Jan 2014

It is possible to repair the old switch. Carefully bend the tabs on the rear and it will come apart. You can the clean and reassemble it. Remember, the switch is on when it is pushed in and off when pulled out. Strange, but true.

40 Coupe

09-24-2020 @ 3:53 PM

reply profile send p.m.

Senior
Posts: 1801
Joined: Oct 2009

Before taking it apart...If the two wire terminals seem to be bent toward each other, try to insert a piece of plastic between the terminals so the plastic forces the terminals straight. You will have to leave the plastic in place, so trim it . Then try the switch. The 36 and 37 dash light switches are the same except for the knob.

flatfoot

09-25-2020 @ 9:42 PM

reply profile send p.m.

Member
Posts: 286
Joined: Mar 2011

Yes, I did try to repair but it is beyond repair. the inside components are just worn out. It has a thick paper or card inside it is all but gone. It is part of the switch itself. Can not replace it. Thank you for your response.

TomO

09-26-2020 @ 7:39 AM

reply profile send p.m.

Senior
Posts: 7385
Joined: Oct 2009

The P/N of the switch is 68-13740.

Can you post photos of your switch, after you have taken it apart, we may be able to give you some ideas on how to repair it.

Tom
