EFV-8 Club Forum / General Ford Discussion / source document for 1939 Ford Tudor Standard specs

   Reply to this DiscussionReply to Discussion | Start new discussionNew Discussion << previous || next >>
Posted By Discussion Topic: source document for 1939 Ford Tudor Standard specs

Printer-friendly Version  send this discussion to a friend  new posts last

RanchWagon
03-23-2020 @ 8:41 PM
Member
Posts: 3
Joined: Mar 2020

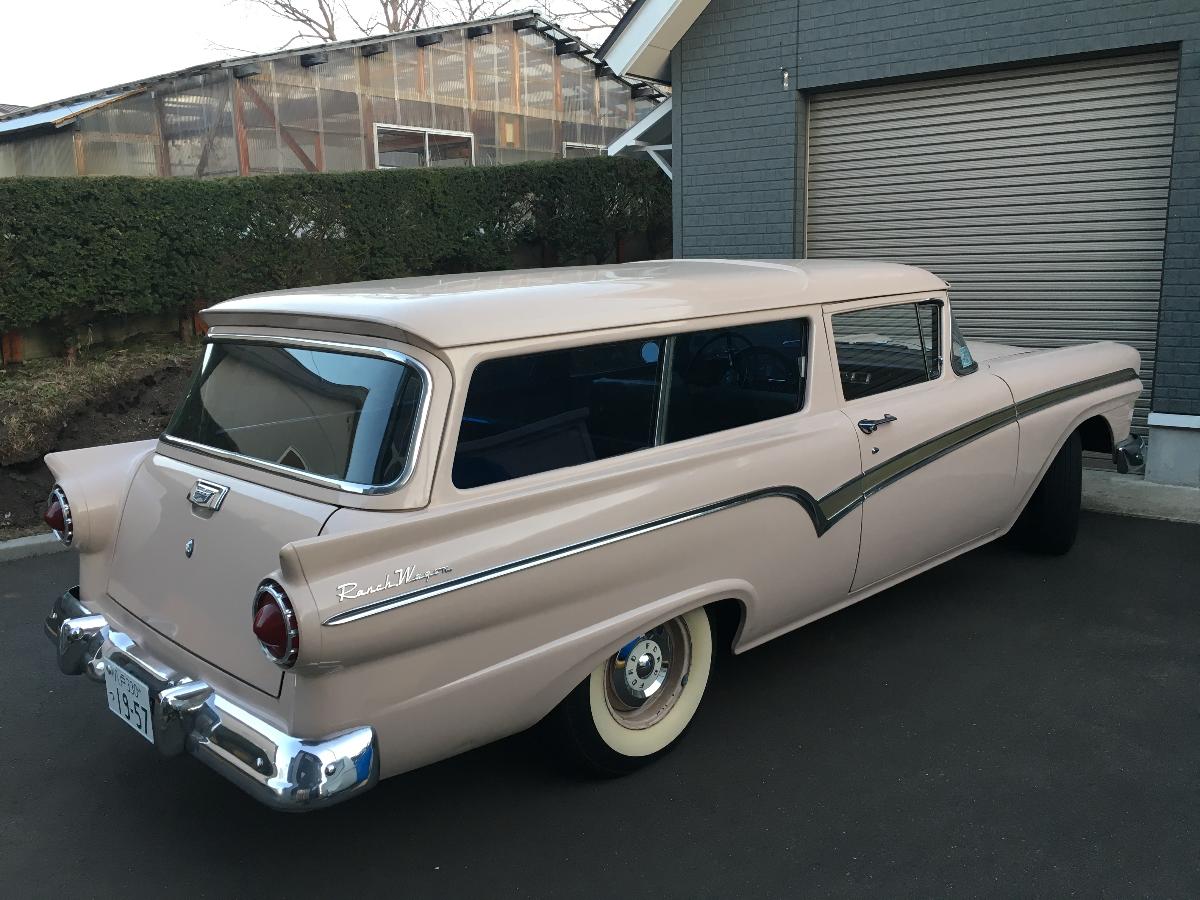

I am a retired USAF master sergeant living in northern Japan. I have two classic cars with me; a 1937 Plymouth P4 coupe and 1957 Del Rio Ranch Wagon. The vehicle safety inspection and registration process here in Japan is quite strict. I have helped other service members register their American cars here.

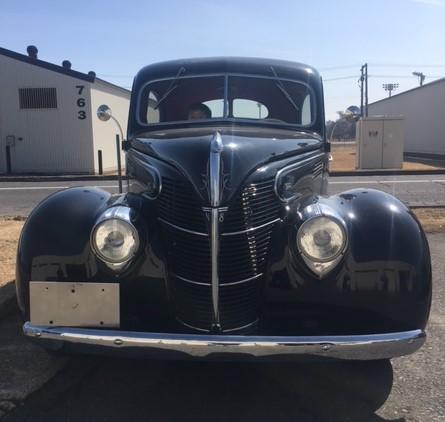

I am currently helping a fellow retiree register his 1939 Ford Tudor Standard sedan, and trying to find a source document for the vehicle's specifications. I have a copy of owner's manual which has some specs. I have also found some source info on Vanpelt website; however, the Government of Japan requires reliable source documents such as factory printed materials.

Do any of the members here have info on weight (front/rear/total) and gross vehicle weight (front/rear/total)? Information on serial #'s issued to the 1939 models, specifically vehicles equipped with the 91A, 221 cu in flathead motor? And horsepower & torque ratings for the 91A motor as well?

I will be waiting on the edge of my seat, and welcome any help that you can provide.

Be safe!

Cheers! Bill Tuttle

40 Coupe
03-24-2020 @ 4:12 AM
Senior
Posts: 1632
Joined: Oct 2009

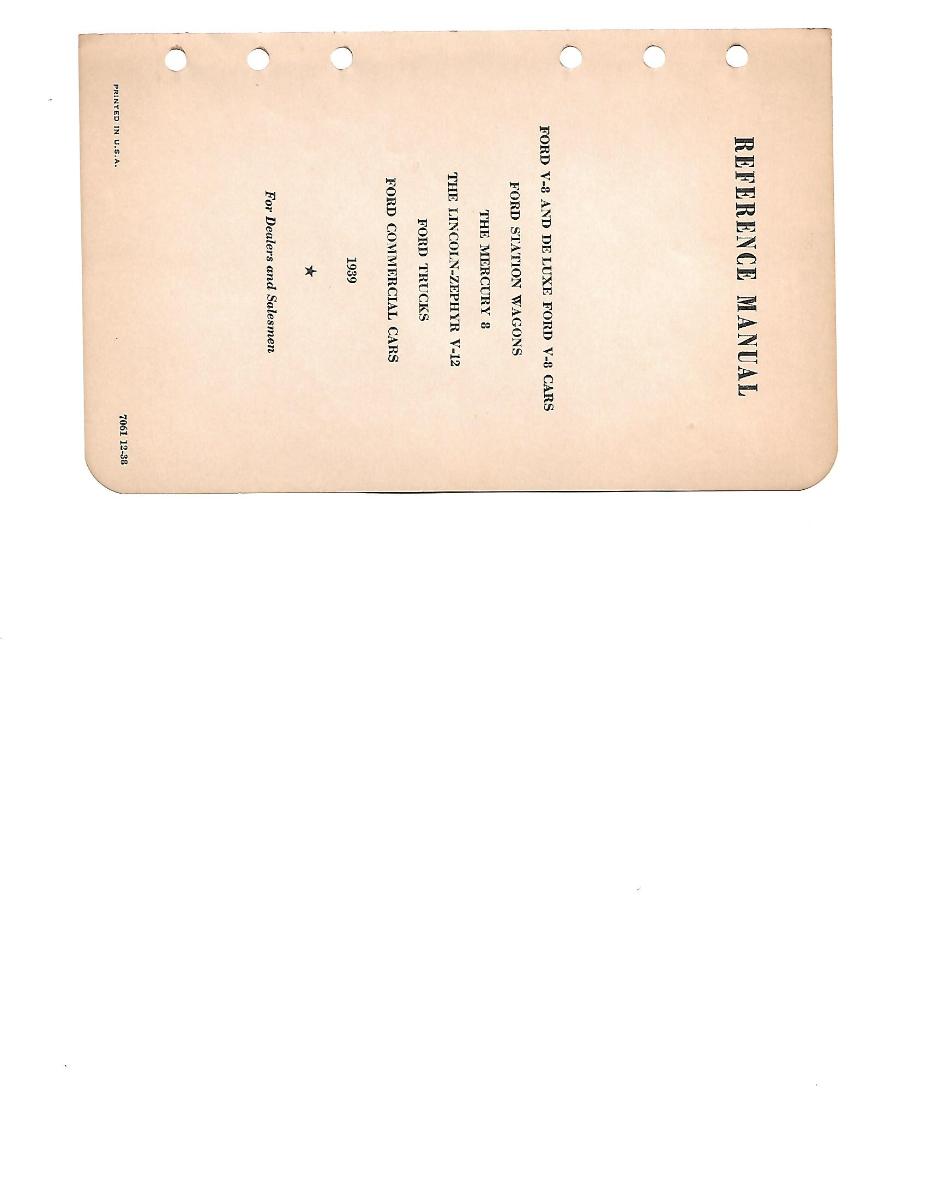

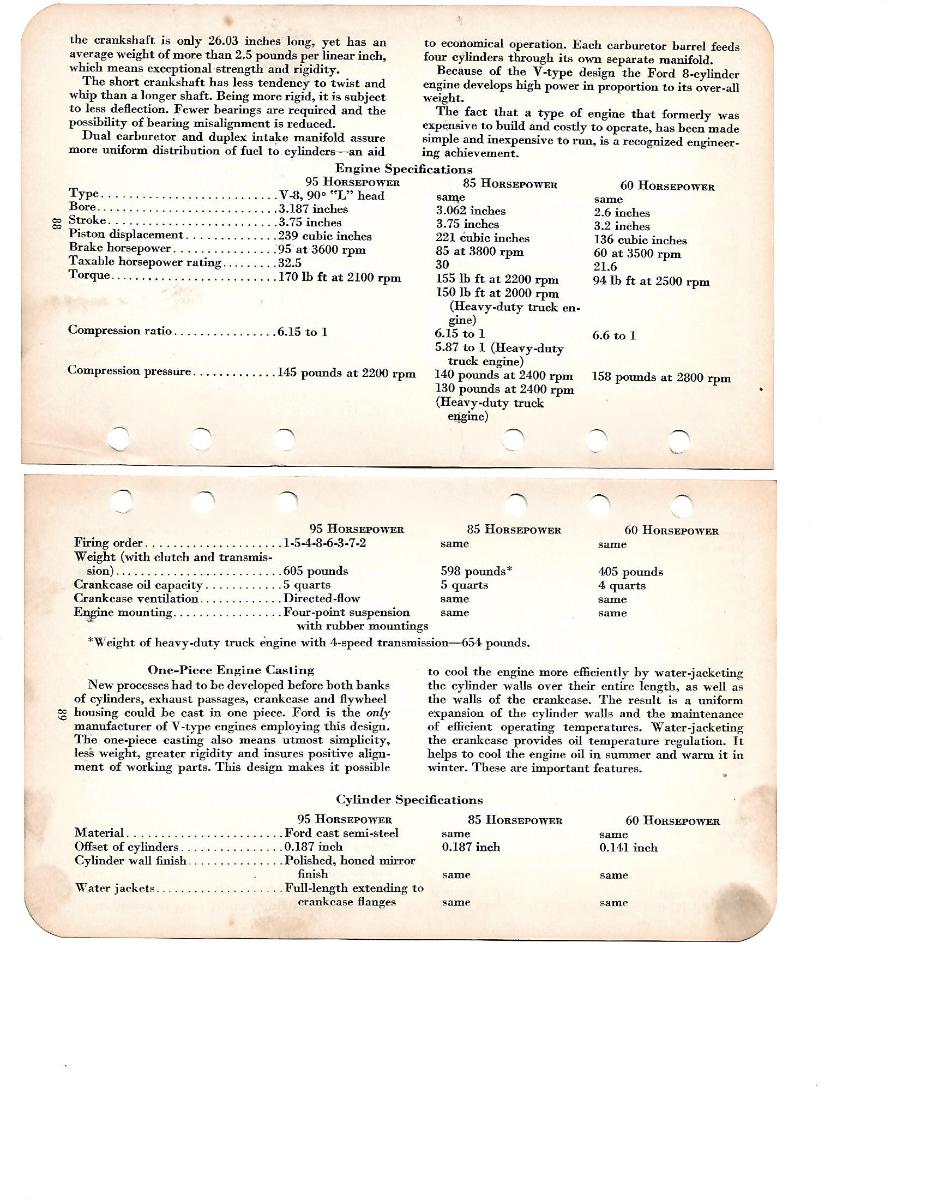

Some of Fords Spec. for the 39 and the 85 HP V8 and their source.

RanchWagon
03-24-2020 @ 7:07 AM
Member
Posts: 3
Joined: Mar 2020

Thanks 40 Coupe! These documents will surely help!

Best, Bill Tuttle

trjford8
03-24-2020 @ 7:33 AM
Senior
Posts: 4189
Joined: Oct 2009

If you want a lot more information you might want to have the owner purchase the V-8 Club's 1938-1939 book. It can be purchased on this site and is a wealth of information for any owner of a '38-'39 Ford. You can also get information from the Benson Ford Research Center in Dearborn, Michigan.

This message was edited by trjford8 on 3-24-20 @ 7:36 AM

RanchWagon
03-25-2020 @ 6:00 AM
Member
Posts: 3
Joined: Mar 2020

Thanks trjford8!

I'll look into the book and research center.

Cheers! Bill Tuttle
