Discussion Topic: 37 hood side panels

1937sedandelivery

02-15-2016 @ 12:25 PM

reply profile send p.m.

Senior
Posts: 501
Joined: Jul 2014

Hello,

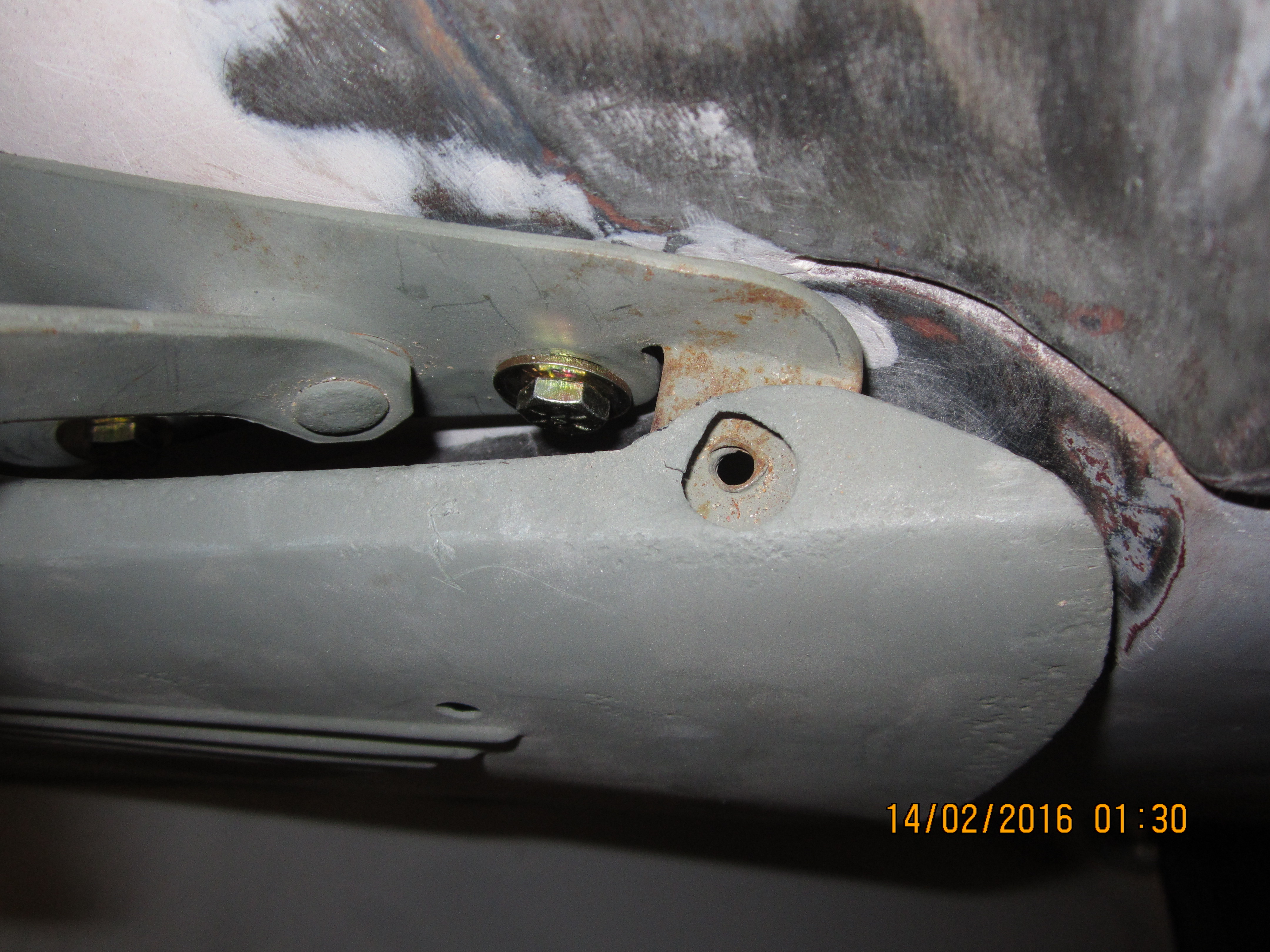

I am having a hard time determining what is correct for the upper rear mounting hole in the hood side panel for my 37. This is where the panel is scr*w*d to the hood hinge. I have four side panels and they are all a bit different, been hacked up over the years. Attached are some photos. I would appreciate if someone could send a simple photo of the correct mounting scheme. My best guess is there is a hole on the top (~.5"), through which a screw is placed and rests upon some sort of metal appendage, that then rest on the hinge lip. Washers are used for shimming the panel to the correct height (from the 1937 Ford Book).
Thanks,
Gregg

This message was edited by 1937sedandelivery on 2-15-16 @ 12:26 PM

02-15-2016 @ 3:58 PM

reply profile send p.m.

Senior
Posts: 1302
Joined: Nov 2009

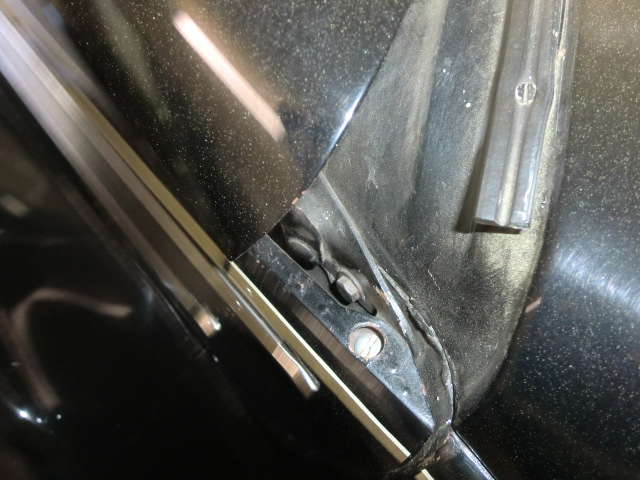

In looking at the picture you posted, The hood side panel you have does not look correct. I've attached a picture of my '37 hood side panel below.

trjford8

02-16-2016 @ 11:11 AM

reply profile send p.m.

Senior
Posts: 4356
Joined: Oct 2009

those stamped ribs on your side panel indicates that you do not have a '37 side panel.

1937sedandelivery

02-16-2016 @ 7:33 PM

reply profile send p.m.

Senior
Posts: 501
Joined: Jul 2014

Thanks.
It looks like there is some little support structure underneath the hole. A screw goes through that structure and fastens to the lip on the hood hinge. I will have to make that structure.
Gregg

1937sedandelivery

02-16-2016 @ 7:37 PM

reply profile send p.m.

Senior
Posts: 501
Joined: Jul 2014

To trjford8,

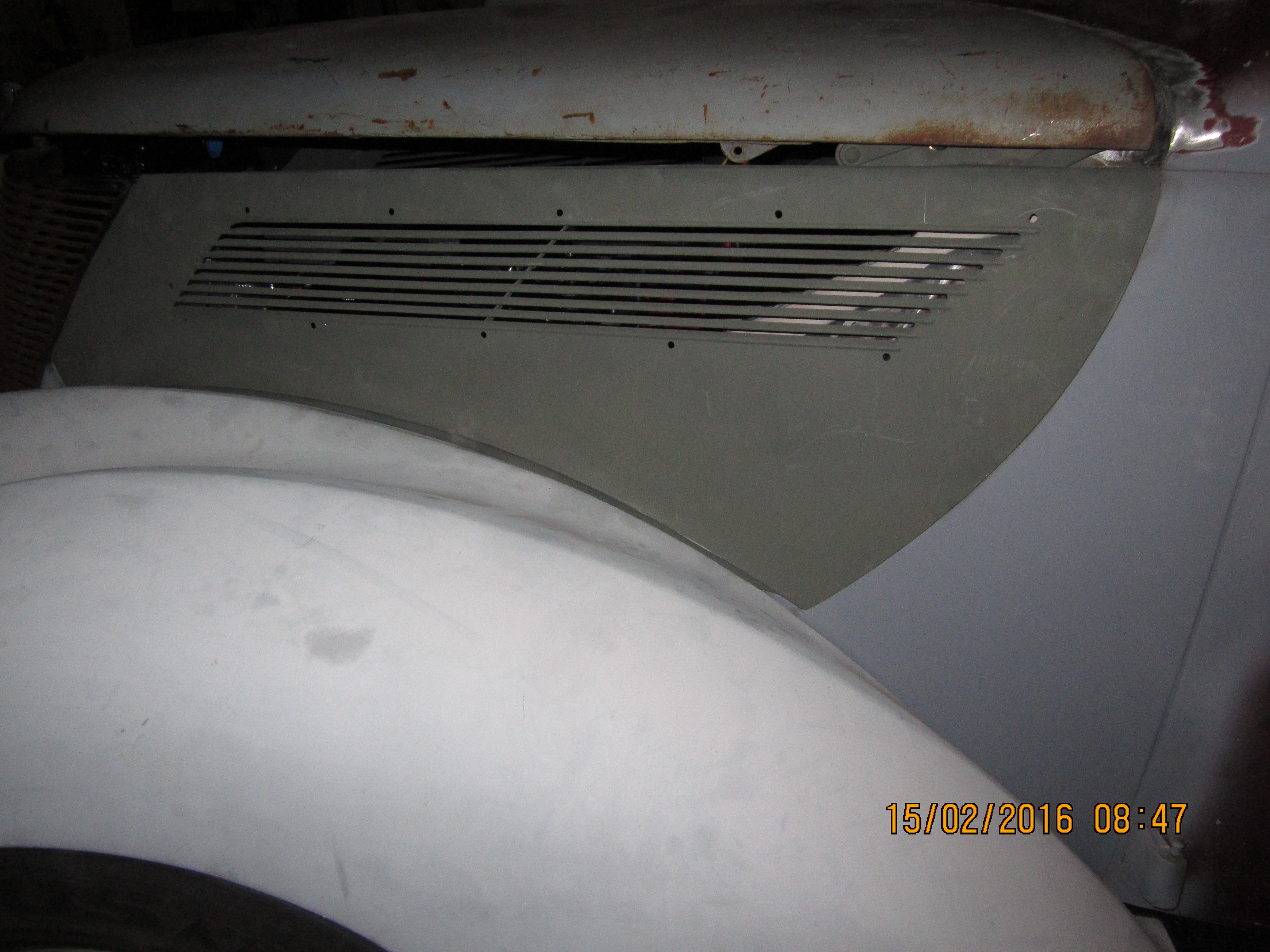

I could be wrong but I am pretty sure my side panel is correct. I have added a pic of the entire panel. If it is not for a 37, then I don't know what year it would go to?
gregg

02-16-2016 @ 7:39 PM

reply profile send p.m.

Senior
Posts: 1302
Joined: Nov 2009

Check out these pictures of a '37 Hood Side Panel for sale on eBay > http://www.ebay.com/itm/1937-37-FORD-SEDAN-FRONT-END-LEFT-DRIVERS-HOOD-SIDE-APRON-PANEL-CURTAIN-/141419957274?hash=item20ed494c1a:g:QPQAAOSwPe1UJYSI&vxp=mtr

02-16-2016 @ 7:46 PM

reply profile send p.m.

Senior
Posts: 1302
Joined: Nov 2009

Your panel looks like a '37 to me but it must have been buggered up by an amateur....

Don't forget that there is fender welting between the fender and the hood side....

This message was edited by MG on 2-16-16 @ 7:50 PM

trjford8

02-17-2016 @ 8:17 AM

reply profile send p.m.

Senior
Posts: 4356
Joined: Oct 2009

Thanks for the additional side view photo. It is a 37 side panel. The first photo was a little confusing looking down from the top.

1937sedandelivery

02-17-2016 @ 6:03 PM

reply profile send p.m.

Senior
Posts: 501
Joined: Jul 2014

Yep, it was even bowed out a little.
I tell you all (no doubt you already know), getting everything to fit/align correctly on the whole front end assembly is a real bear. I know every nut and bolt pretty well by now (third time).
Thanks to all,
Gregg
