Discussion Topic: 1947 Ford car light switch terminals

jamesmundstock

01-13-2021 @ 6:46 PM

reply profile send p.m.

New Member
Posts: 112
Joined: Apr 2017

I am installing my new harness and the legend has wires going to terminal B1 and others to B2. This is besides the wires for H, P, R. My switch has two terminal B but there is no designation which is B1 and B2. My question does it matter which is B1 and which is B2? Thanks in advance for any input.

51woodie

01-14-2021 @ 5:42 AM

reply profile send p.m.

Senior
Posts: 509
Joined: Jan 2017

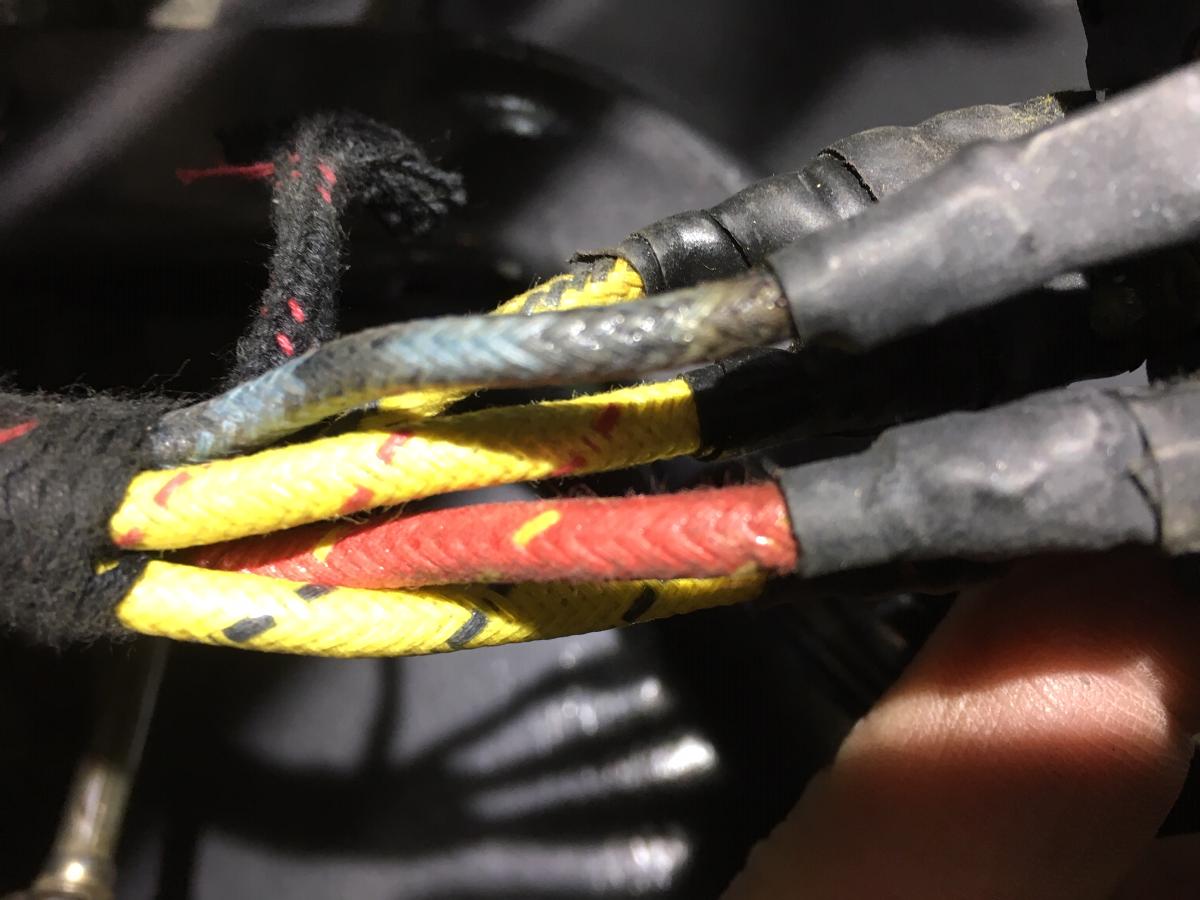

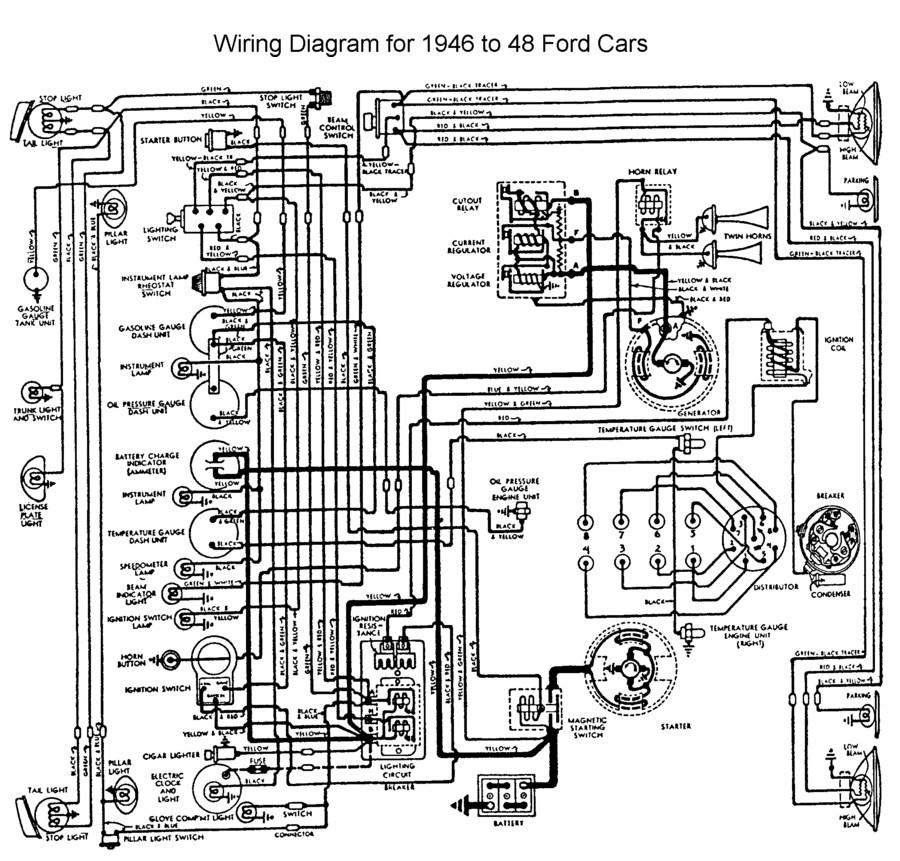

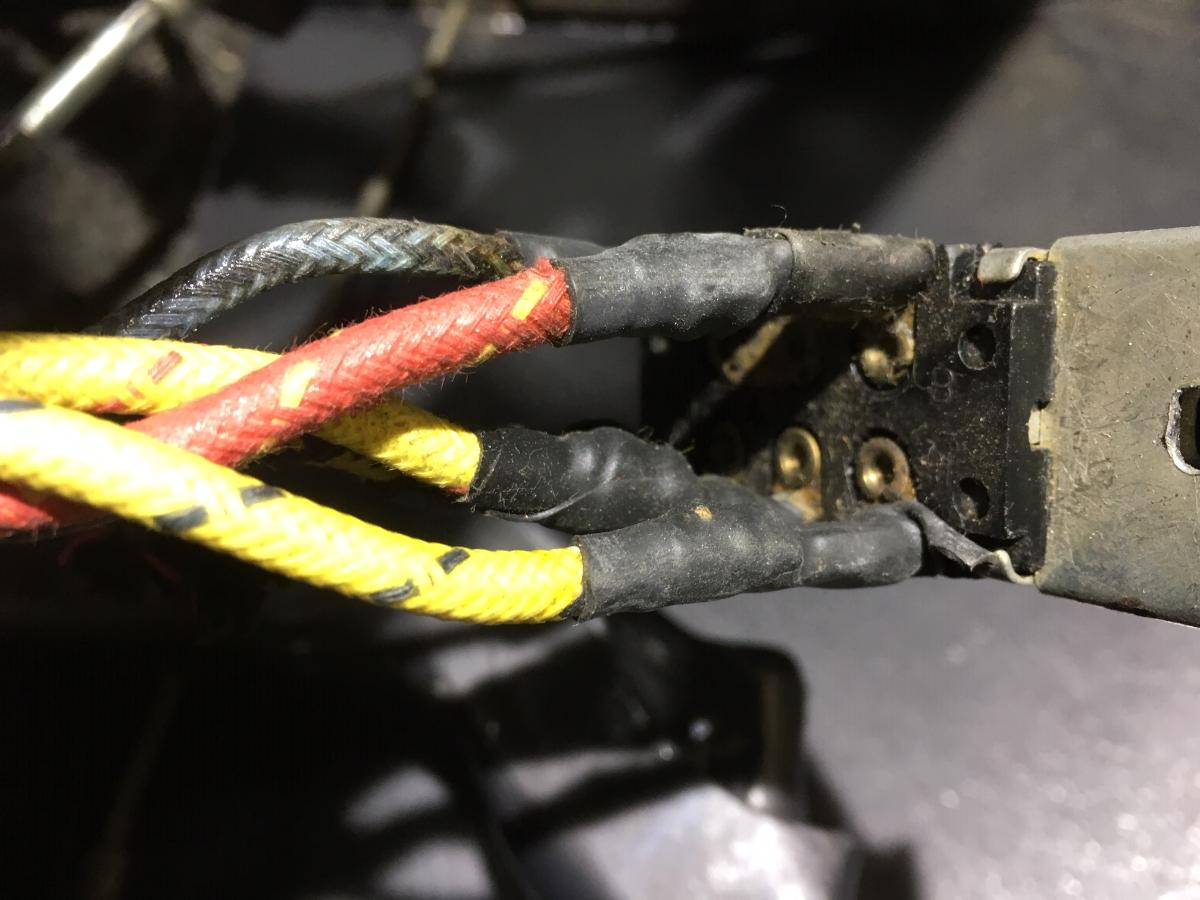

James. Here are pictures of the connections on the light switch of my '46 Coupe. Should be the same as your '47. Also attached a wiring diagram, that I hope is clear enough to read.

Darned pictures got turned sideways! But between the pics and diagram, you'll be able to figure it out.

This message was edited by 51woodie on 1-14-21 @ 5:45 AM
