EFV-8 Club Forum / General Ford Discussion / Stud Length for wire wheel center supports

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: Stud Length for wire wheel center supports -- page: 1 2

LD PARKER

06-01-2019 @ 3:52 PM

reply profile send p.m.

Member
Posts: 28
Joined: May 2017

I have a 1934 Ford Tudor with 1940 hydraulic brakes. Since I have original 1934 wire wheels I understand you need to use a center support so the rims do not warp.

I bought a set from speedway motors (Ford wire wheel center supports) but my studs are not long enough.

Has anyone had this problem? Does anyone have an idea of the length of replacement studs I will need?

trjford8

06-02-2019 @ 7:51 AM

reply profile send p.m.

Senior
Posts: 4353
Joined: Oct 2009

Check with Gorilla Automotive. They make all types of lug nuts and I think they make lug nuts that extend through the hole to grab more threads.

This message was edited by trjford8 on 6-2-19 @ 7:52 AM

TomO

06-02-2019 @ 7:53 AM

reply profile send p.m.

Senior
Posts: 7385
Joined: Oct 2009

The studs on 1940 drums project 3/4" from the drum. The plate is .114" or 2 threads on the 1/2" x 20 stud. If the plate is seated on the drum, you should be able to get a standard lug nut on the stud. The lug nut should fit on the stud.

Can you post a photo of the adapter on the drum and the back of the wheel.

Tom

LD PARKER

06-02-2019 @ 5:21 PM

reply profile send p.m.

Member
Posts: 28
Joined: May 2017

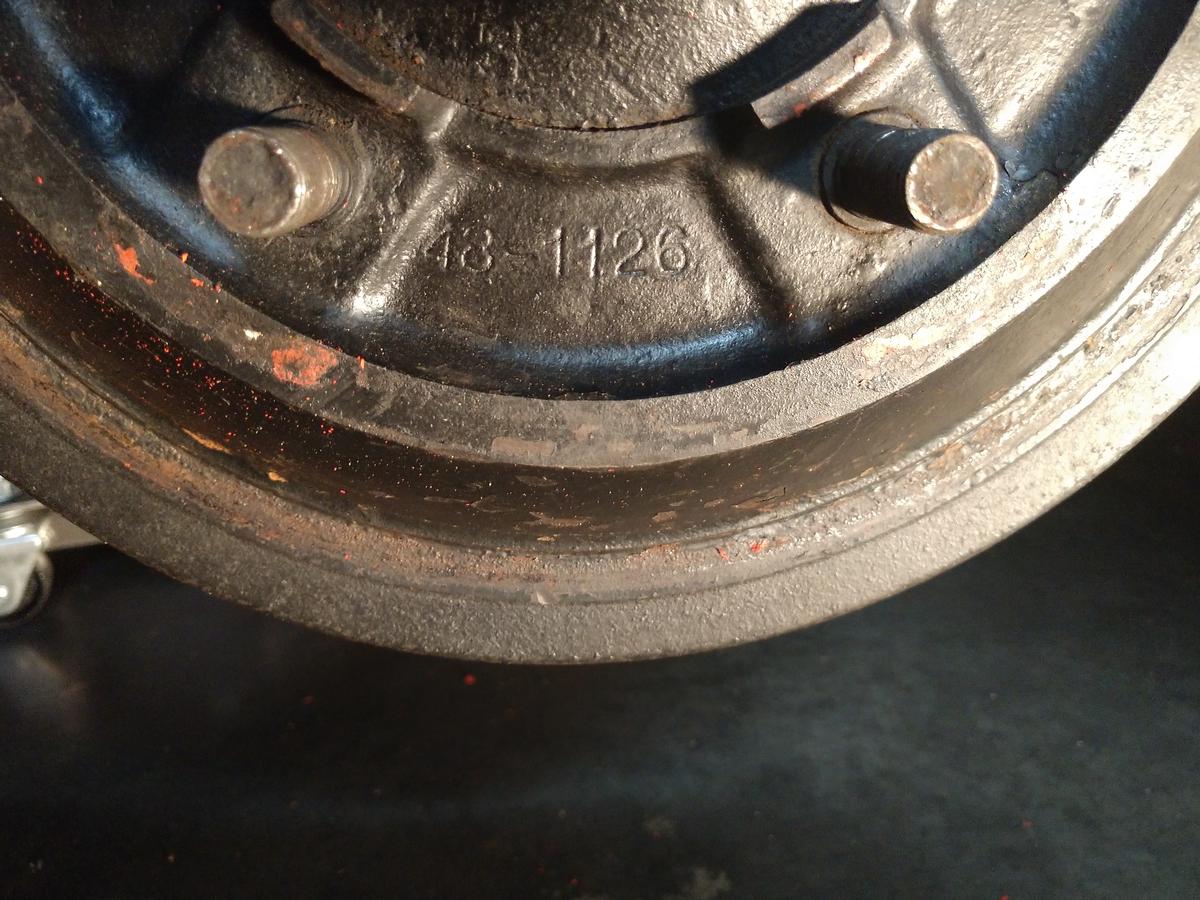

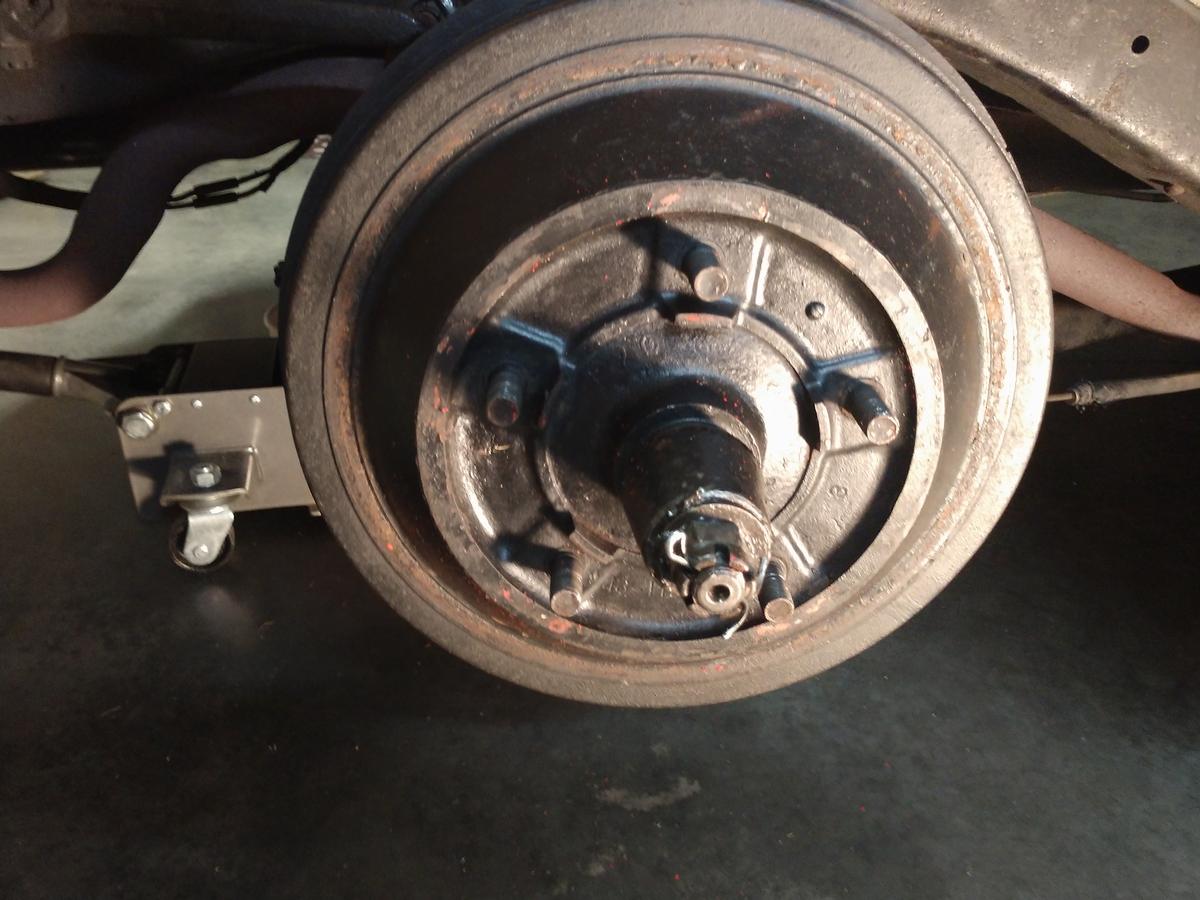

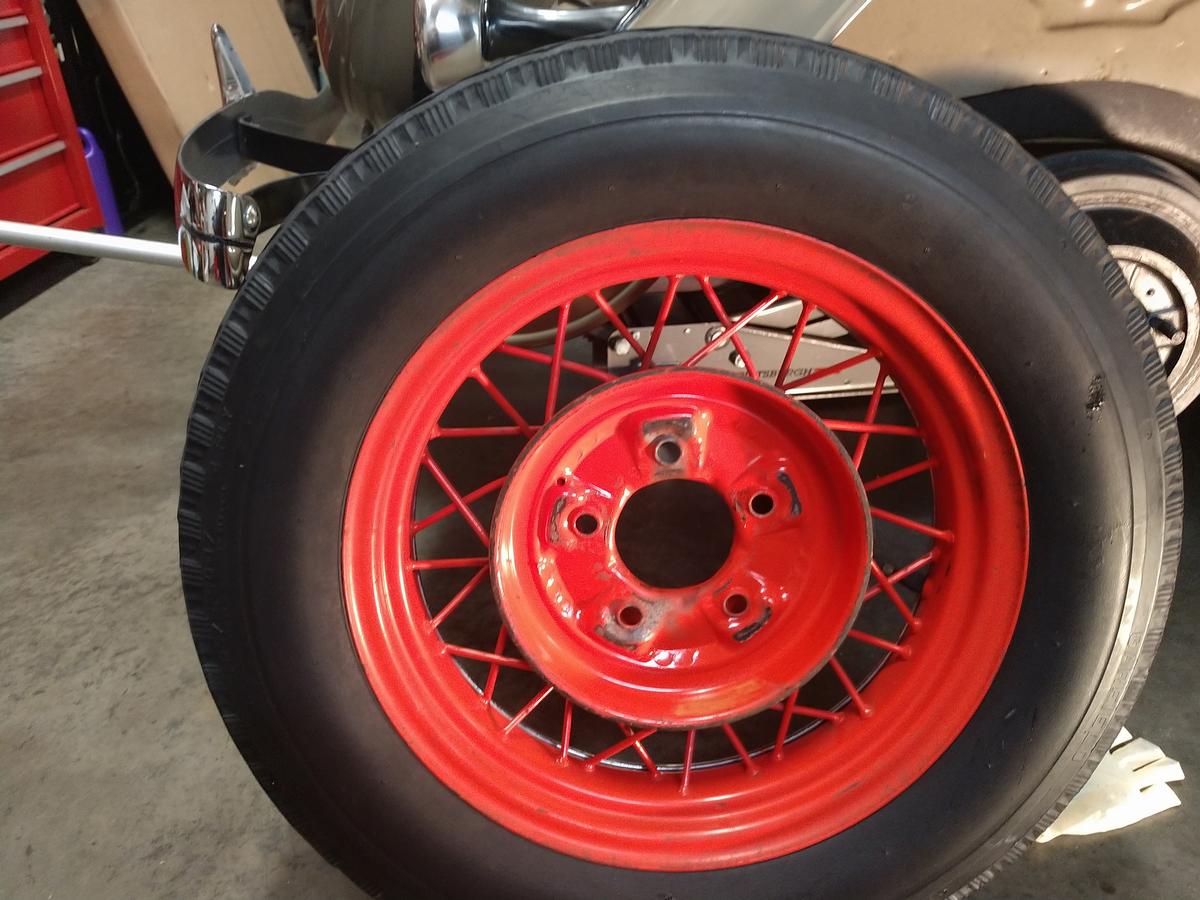

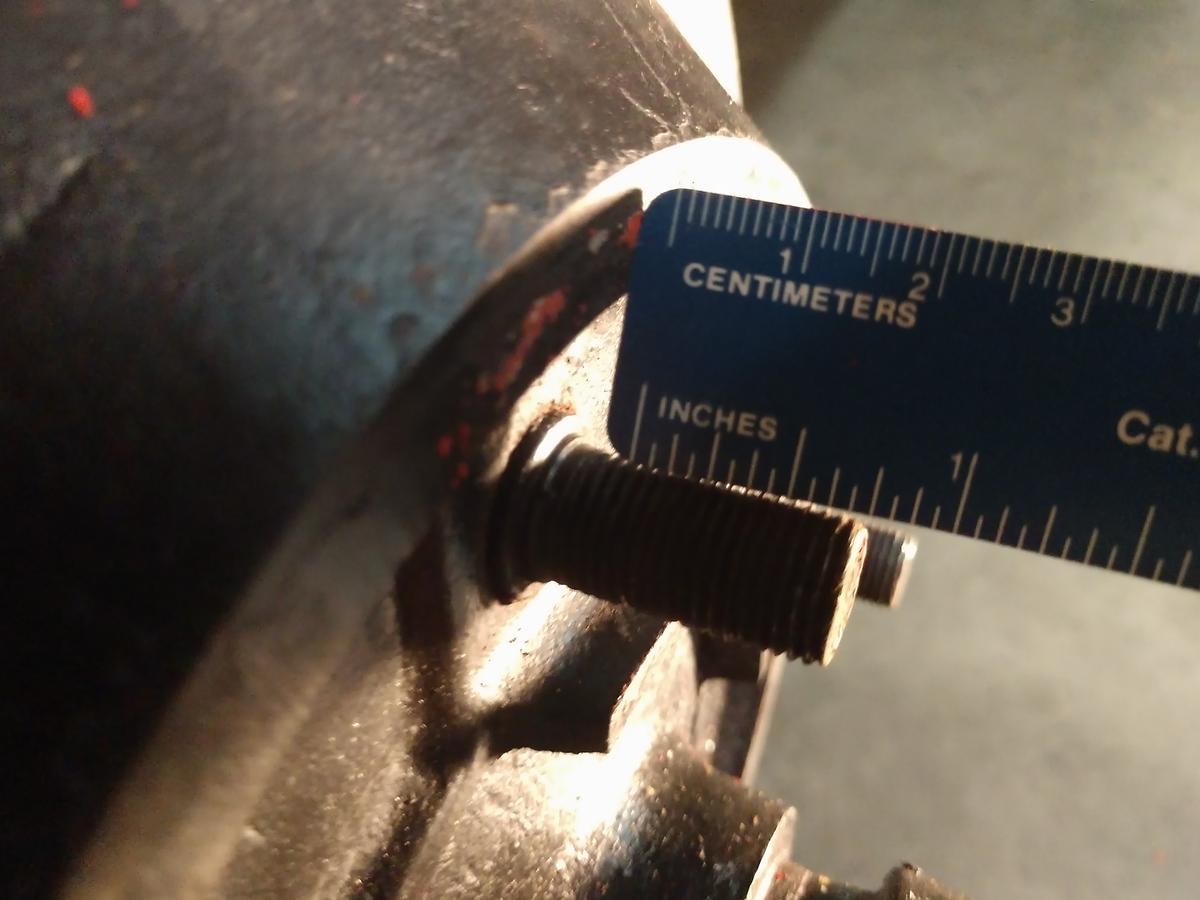

Here are the pics Tom. FYI...…..both front rims and the rear driver's rim worked fine with the wire wheel support.
The rear passenger just doesn't have enough threads to secure safely. Thoughts?

TomO

06-03-2019 @ 9:05 AM

reply profile send p.m.

Senior
Posts: 7385
Joined: Oct 2009

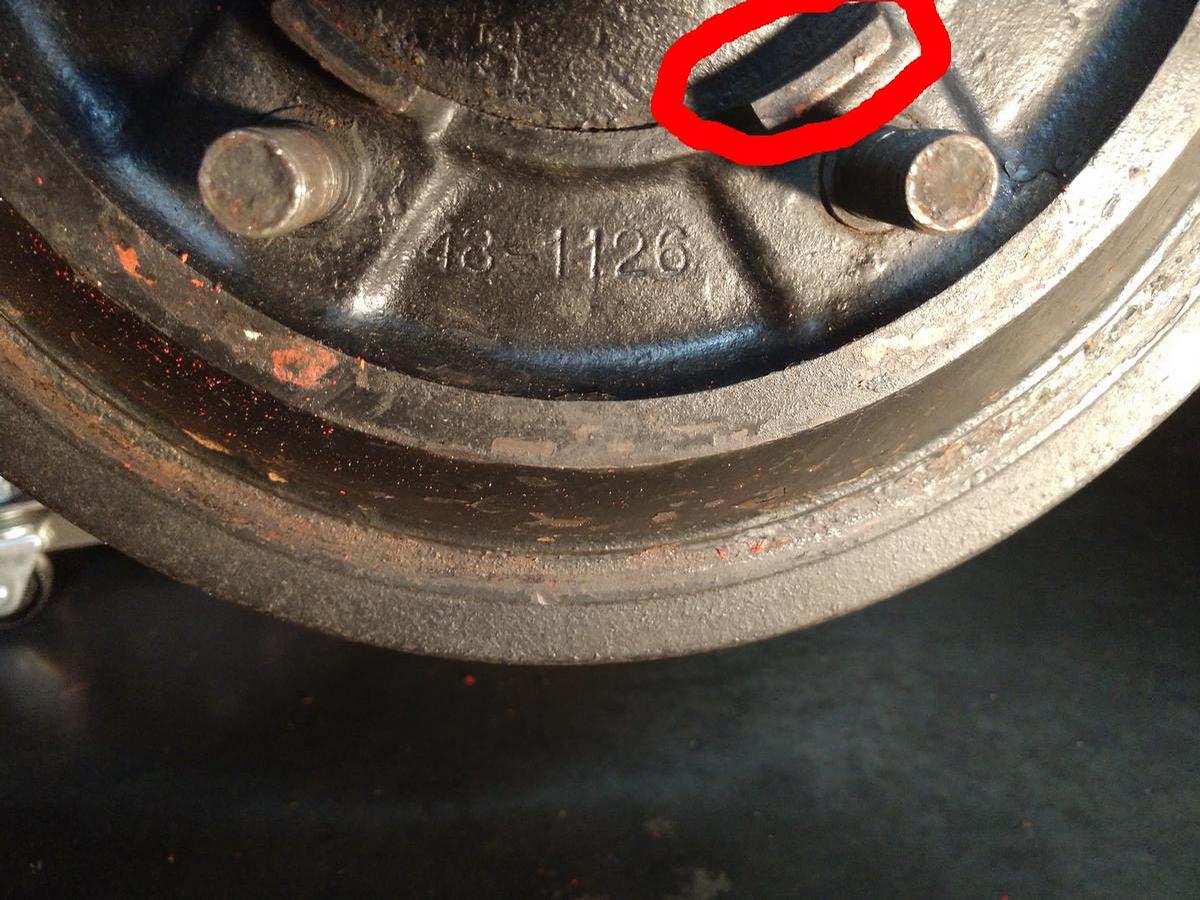

Are your other drums the same as the one in the photo? Could it be that the projections (outlined in red o the photo) inside of the studs are holding the support out too far?

I have never seen a drum like that. All of the ones that I have seen have a flat surface around the studs.

Tom

LD PARKER

06-03-2019 @ 2:03 PM

reply profile send p.m.

Member
Posts: 28
Joined: May 2017

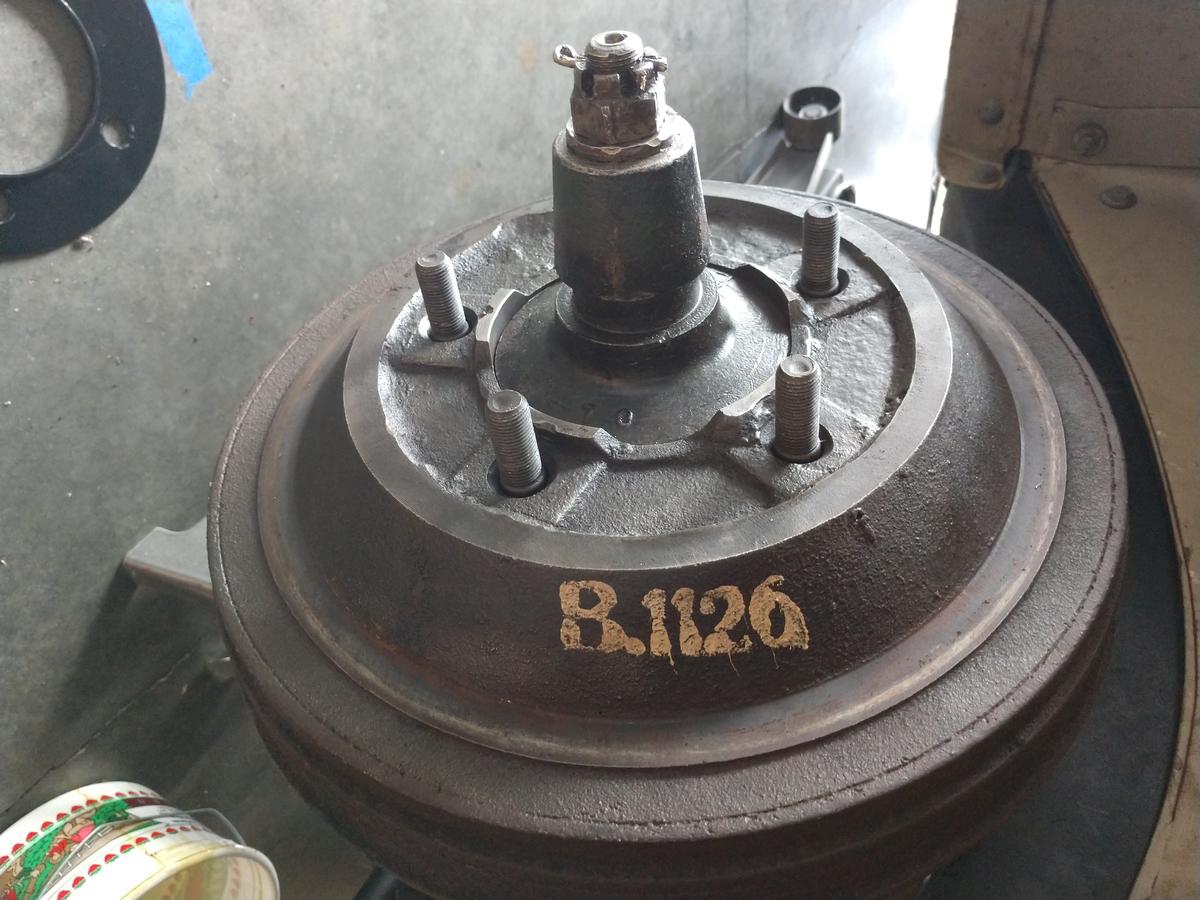

TomO Yes, the other rear hub (driver's side/ photo) has projections as well but not as pronounced as the passenger rear...……..could have been ground down a bit.

I'll probably buy two rear hubs so that there is full contact with wheel center support.

Thanks for your thoughts TomO and thanks TrjFord for your information.

CharlieStephens

06-03-2019 @ 2:08 PM

reply profile send p.m.

Senior
Posts: 922
Joined: Oct 2009

The drums you show have the projections intended for the wire wheels. You need '40 drums. Although on a different topic you might find the illustrations interesting: http://www.jalopyjournal.com/forum/threads/40-ford-wheels-on-a-model-a.750368/#post-8330045

Charlie Stephens

This message was edited by CharlieStephens on 6-3-19 @ 2:11 PM

juergen

06-03-2019 @ 4:58 PM

reply profile send p.m.

Member
Posts: 275
Joined: Jan 2010

Charlie, why does he need 40 drums? Can't he use the 34 drums as is (without a spacer)? Of course with the 40 drums you would need the spacer.

trjford8

06-04-2019 @ 7:23 AM

reply profile send p.m.

Senior
Posts: 4353
Joined: Oct 2009

I had the same thought as juergen.

LD PARKER

06-05-2019 @ 3:57 AM

reply profile send p.m.

Member
Posts: 28
Joined: May 2017

Great discussion guys! I think I'll leave everything as it is if those hubs are intended for wire wheels.

Appreciate your thoughts / opinions.
