EFV-8 Club Forum / General Ford Discussion / 1937 Ford Battery Hold - Down

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: 1937 Ford Battery Hold - Down -- page: 1 2

TonyM

01-14-2018 @ 8:39 PM

reply profile send p.m.

Member
Posts: 464
Joined: Sep 2010

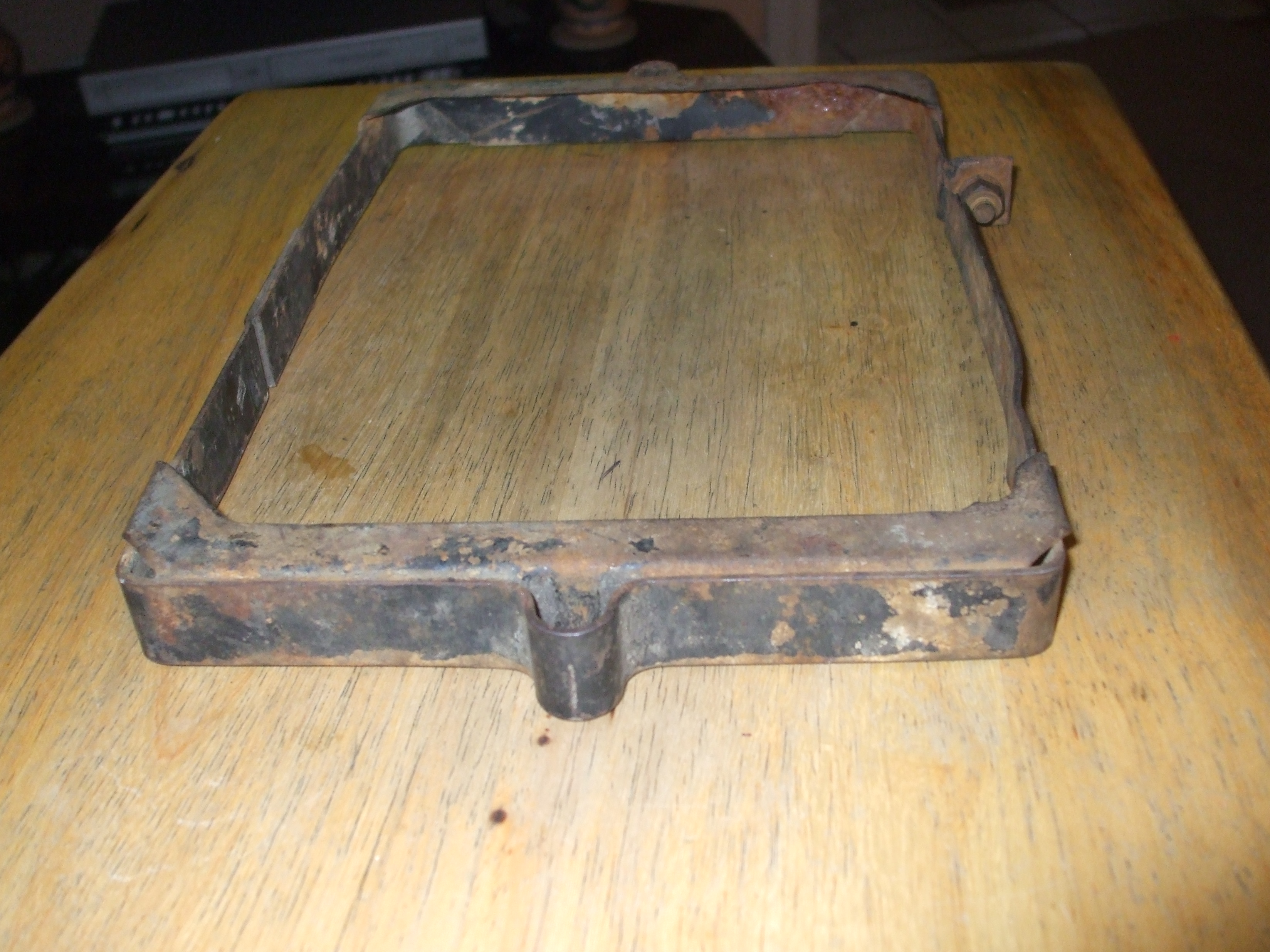

My car came with this battery hold-down piece. It does not match the descriptions in the club's 1937 book. Is it a Ford piece? If it is a Ford piece, was it used on 1937 Fords? Thanks.

.
.
.
78-730B

TonyM

01-14-2018 @ 8:39 PM

reply profile send p.m.

Member
Posts: 464
Joined: Sep 2010

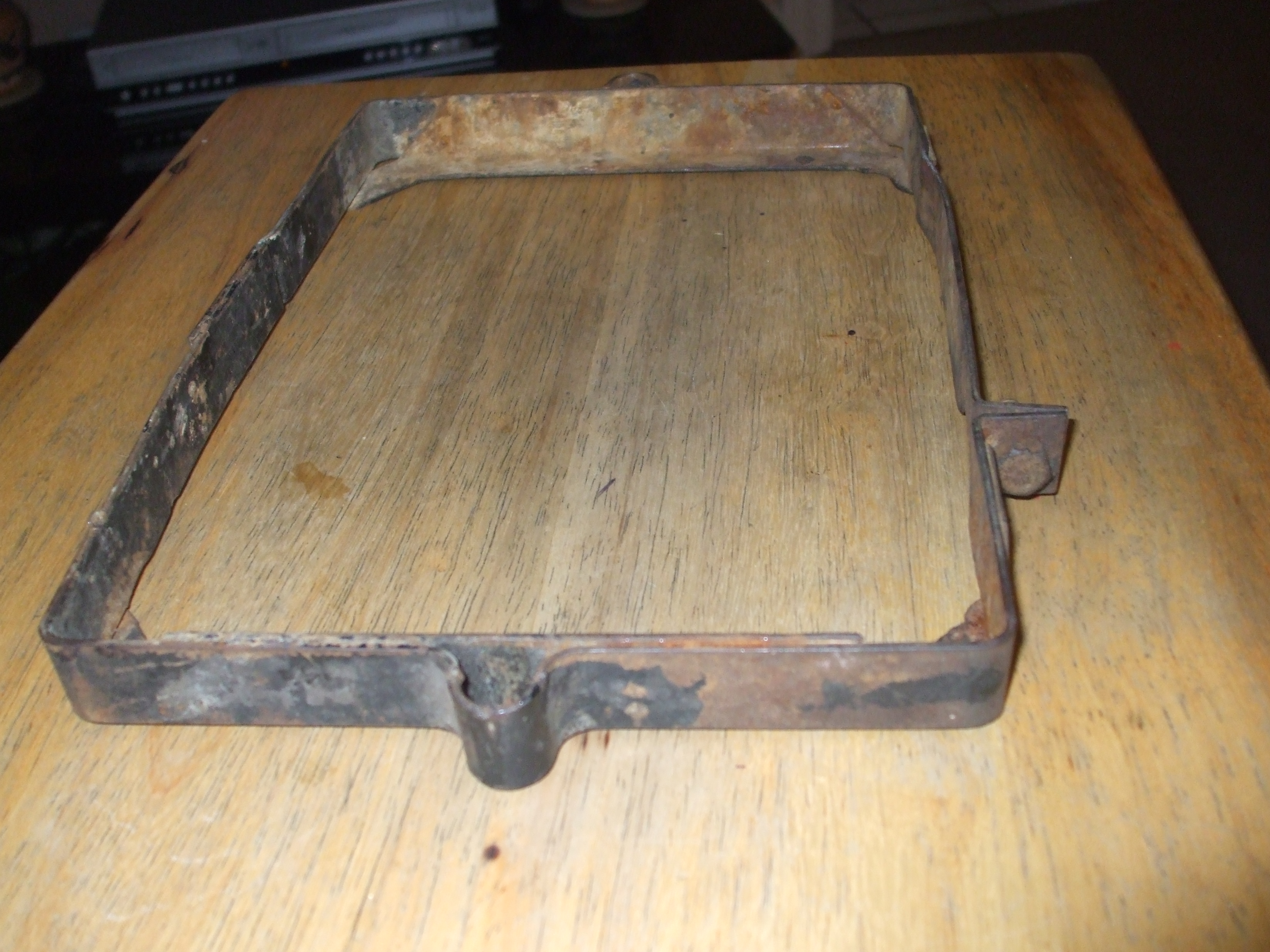

Is this a Ford Battery Hold-Down?

.
.
.
78-730B

TonyM

01-14-2018 @ 8:40 PM

reply profile send p.m.

Member
Posts: 464
Joined: Sep 2010

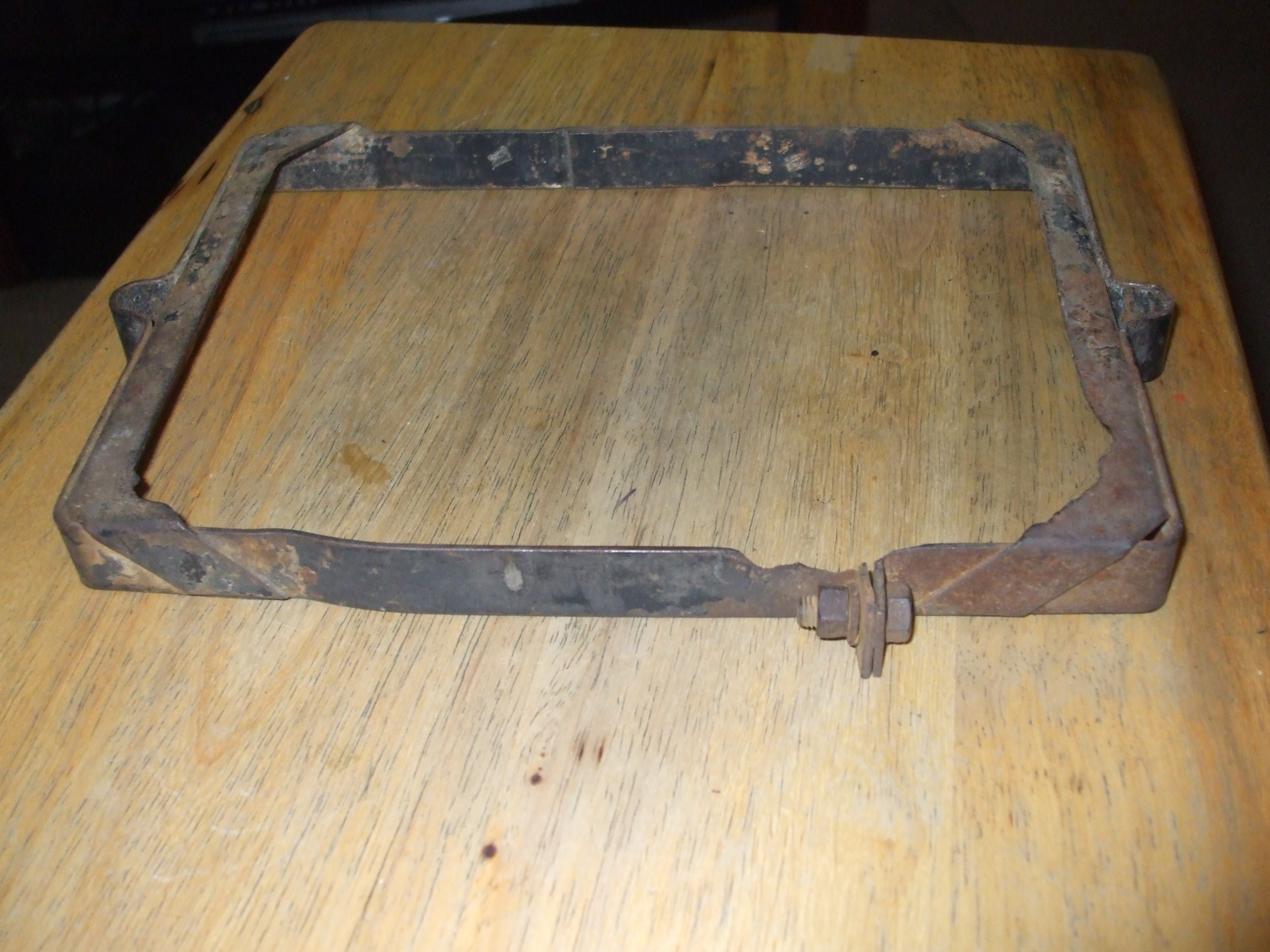

Battery hold down

.
.
.
78-730B

nelsb01

01-14-2018 @ 9:03 PM

reply profile send p.m.

Senior
Posts: 1098
Joined: Oct 2009

TonyM;
It looks like my battery hold down bracket in my 1949 -- except for the bolt on the one side.
I agree, that it does not match the hold down shown in the 1937 Ford Book.

Chris.NZ

01-15-2018 @ 12:34 AM

reply profile send p.m.

Member
Posts: 49
Joined: Oct 2009

That photo is of a 39 deluxe battery clamp
PN 91A 5165.
37, 38 and 39 standard clamps are all pretty similar but are non-adjustable.

ford38v8

01-15-2018 @ 9:41 AM

reply profile send p.m.

Senior
Posts: 2883
Joined: Oct 2009

Tony, The hold down you picture is Ford, but is for a '39 DeLuxe. The '37, '38. and '39 Standard does not have the nut & bolt, but does have a vertical, down-turned ear, welded at the center of one long side. This ear has a threaded hole to accept a bolt through the firewall from inside the car. (Look at your firewall and dash insulation). This ear also has a folded down tab at the top, which extends over the top of the battery. There were three designs of the hold down clamp, all three slightly different, but having the above stated specs.

Alan

TonyM

01-15-2018 @ 11:00 AM

reply profile send p.m.

Member
Posts: 464
Joined: Sep 2010

Thanks Everybody.

.
.
.
78-730B

supereal

01-17-2018 @ 1:39 PM

reply profile send p.m.

Senior
Posts: 6819
Joined: Oct 2009

You can order the hold down at C&G 800/266-0470. The same [art was used 33-38. The part number is 40-4165-A, about $15

01-17-2018 @ 1:49 PM

reply profile send p.m.

Senior
Posts: 1301
Joined: Nov 2009

Part number for the '37 Hold-Down is 78-5165. This is what you need (picture) from Bob Drake > https://www.bobdrake.com/FordItem.aspx?Item=78-5165

TonyM

01-17-2018 @ 7:39 PM

reply profile send p.m.

Member
Posts: 464
Joined: Sep 2010

Thanks.

.
.
.
78-730B
