Crankcase Ventilation System 1937 V8-85
-- page:
1
2
|
|
ibshane |
10-26-2017 @ 3:11 AM
|
|
|
New Member
Posts: 147
Joined: Oct 2017
|

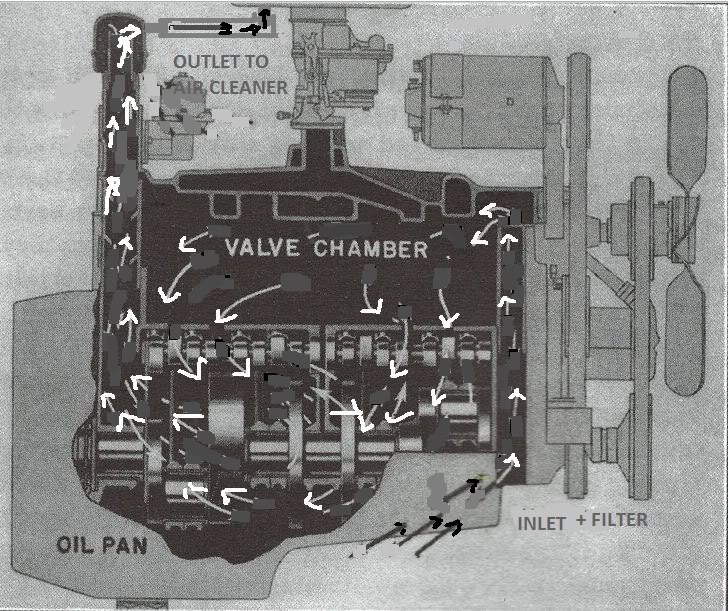

I am trying to learn about my 1937 Deluxe Fordor V8-85 I think I finally found an illistration showing how the crankcase ventilation system works...., but if I'm not mistaken.., the illistration (Link below) shows the air flow going the wrong direction? Am I right..., or does the flatty somehow defy the law of physics?
This message was edited by ibshane on 10-26-17 @ 3:12 AM
|
Yokomo99 |
10-26-2017 @ 4:36 AM
|
|
|
Member
Posts: 52
Joined: Oct 2017
|
I would have to agree, It looks like someone changed the direction of the arrows. The problem is the diagram shows the gasses being drawn to the air filter, but the air filter at that point does not have any suction. It would be impossible for the flow to go that way. I was thinking on adding a PCV system to my 53. I was just going to cap off the road tube and add a PCV valve to the plug and pipe it to the intake. The crankcase vapours are over 80% gasoline and it makes more sense to burn it rather than throw the vapours into the atmosphere. Matt
Be sure to check out my YouTube pages at: https://www.youtube.com/user/MatthewBergin1 https://www.youtube.com/channel/UCJCdOfmXtM8xO9nXeQ-iSQQ
|
ken ct. |
10-26-2017 @ 4:36 AM
|
|
|
Senior
Posts: 1513
Joined: Jan 2010
|
Looks like that system is plumbed for a pcv system. Not stock for a 59AB. ken ct.
|
ibshane |
10-26-2017 @ 4:51 AM
|
|
|
New Member
Posts: 147
Joined: Oct 2017
|

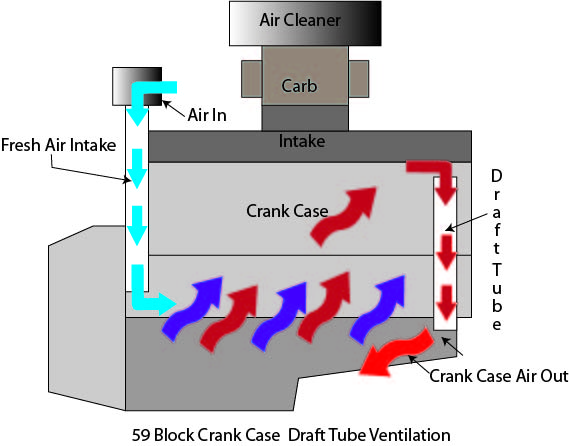

I'm thinking that this illustration is more like it!
|
ibshane |
10-26-2017 @ 4:53 AM
|
|
|
New Member
Posts: 147
Joined: Oct 2017
|

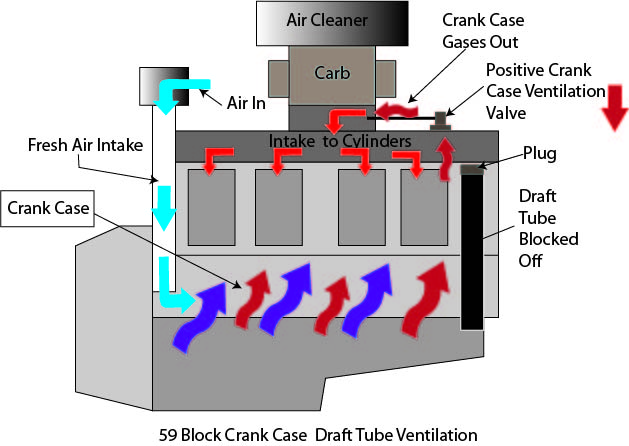

And this one looks like it would be right for adding a vacuum line PVC set up.
This message was edited by ibshane on 10-26-17 @ 4:55 AM
|
ford38v8 |
10-26-2017 @ 8:29 AM
|
|
|
Senior
Posts: 2731
Joined: Oct 2009
|
Remember back in the day, we were all so negative about PCV valves, thinking they would destroy our engines. Just shows we've always been skeptical about the wisdom of Big Brother.
Alan
|
wmsteed |
10-28-2017 @ 10:23 AM
|
|
|
Senior
Posts: 606
Joined: Oct 2009
|
The prevailing misconception regarding Positive Crankcase Ventilation (PCV) is one of those Old School thoughts like non-detergent oil, water in the cooling system and no thermostats, to name just a few, that just won't go away. The theory that "road draft" ventilation would provide adequate ventilation for an engine relied on the movement of the vehicle to provide air flow within the engine. A vehicle that is not moving does not provide air flow, therefore air movement must be supplied via vacuum. A PCV devise is a very simple item that requires a valve, that should match the CID of the engine it is being used on. The valve must be plumbed into the the intake manifold below the throttle body plate. The PCV also must be readily accessible for servicing. Ergo, concealed up inside the engine is not a good idea. The PCV must be into a vented baffle to prevent oil being drawn into the valve. A fresh air source that allows an unobstructed flow of air into the crankcase, valve covers and lifter chamber of the engine. All open vents into the crankcase, pan, etc., must be sealed off. Flat head engines present a real challenge, 59AB and earlier are more difficult compared to the 8BA/8CM, the later being easier due to the location of the engine oil fill tube on the front of the engine. Trying to draw air from a crankcase via the air cleaner is not a good idea because the volume of air is not adequate. Overhead engines are much easier to adapt to a PCV system. Some simple facts about a PCV system: 1. the adaption of PCV's in 1963 eliminated 95% of the emissions of the internal combustion engine. 2. An engine equipped with a PCV system will generally require a liener fuel mixture. 3. An engine equipped with a PCV system will run cleaner, minimal sludge will occur, therefore the engine will last longer.
Bill 36 5 win delx cpe
|
MG |
10-28-2017 @ 11:11 AM
|
|
|
Senior
Posts: 1244
Joined: Nov 2009
|
"1. the adaption of PCV's in 1963 eliminated 95% of the emissions of the internal combustion engine." 95%???! Hard to grasp....
|
ibshane |
10-31-2017 @ 12:09 AM
|
|
|
New Member
Posts: 147
Joined: Oct 2017
|
Probably eliminated 95% of the Crankcase fumes (blow by)
|
ibshane |
10-31-2017 @ 12:16 AM
|
|
|
New Member
Posts: 147
Joined: Oct 2017
|

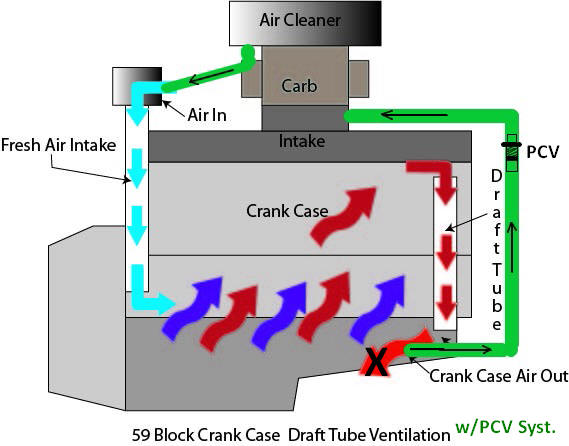

Soooo..., is there any reason I can't run a vacuum line from a Carb. spacer, and somehow adapt it to the oil pan vent with a PCV valve sitting vertically somwhere in between ?? See diagram: My thoughts in green.
|
