EFV-8 Club Forum / Light Commercial Truck Disscussion / Adjust parking brake

   Reply to this DiscussionReply to Discussion | Start new discussionNew Discussion << previous || next >>
Posted By Discussion Topic: Adjust parking brake

Printer-friendly Version  send this discussion to a friend  new posts last

mhsprecher
08-15-2021 @ 11:33 AM
Member
Posts: 43
Joined: Oct 2015

I cannot get the parking brake to hold on my 45 pu. I adjusted it at both the handle and where the cable connects to the cables to the wheels under the cab. It holds, but the rt rear brake is too tight when it is off. It seems that nothing I can do will get the driver's side to hold. What am I doing wrong? I have the left rear drum off to see if there is an issue inside the brake drum. Nothing amiss that I can see.

This message was edited by mhsprecher on 9-11-21 @ 5:39 PM

39 Ken
08-16-2021 @ 3:44 AM
Member
Posts: 375
Joined: Oct 2009

Did you replace the p-brake lever hold-off springs?

There has been an issue with the repro springs
that hold off the p-brake lever inside the drum.
That repro spring that fits between the lever and the tube
in the backing plate is about twice as long as it should be.

When p-brake is applied, the repro spring compresses fully
but doesn't let the brake shoe to engage tight enough to the
drum.

I don't recall how long the spring should be but someone here
may know.


mhsprecher
09-10-2021 @ 6:41 PM
Member
Posts: 43
Joined: Oct 2015

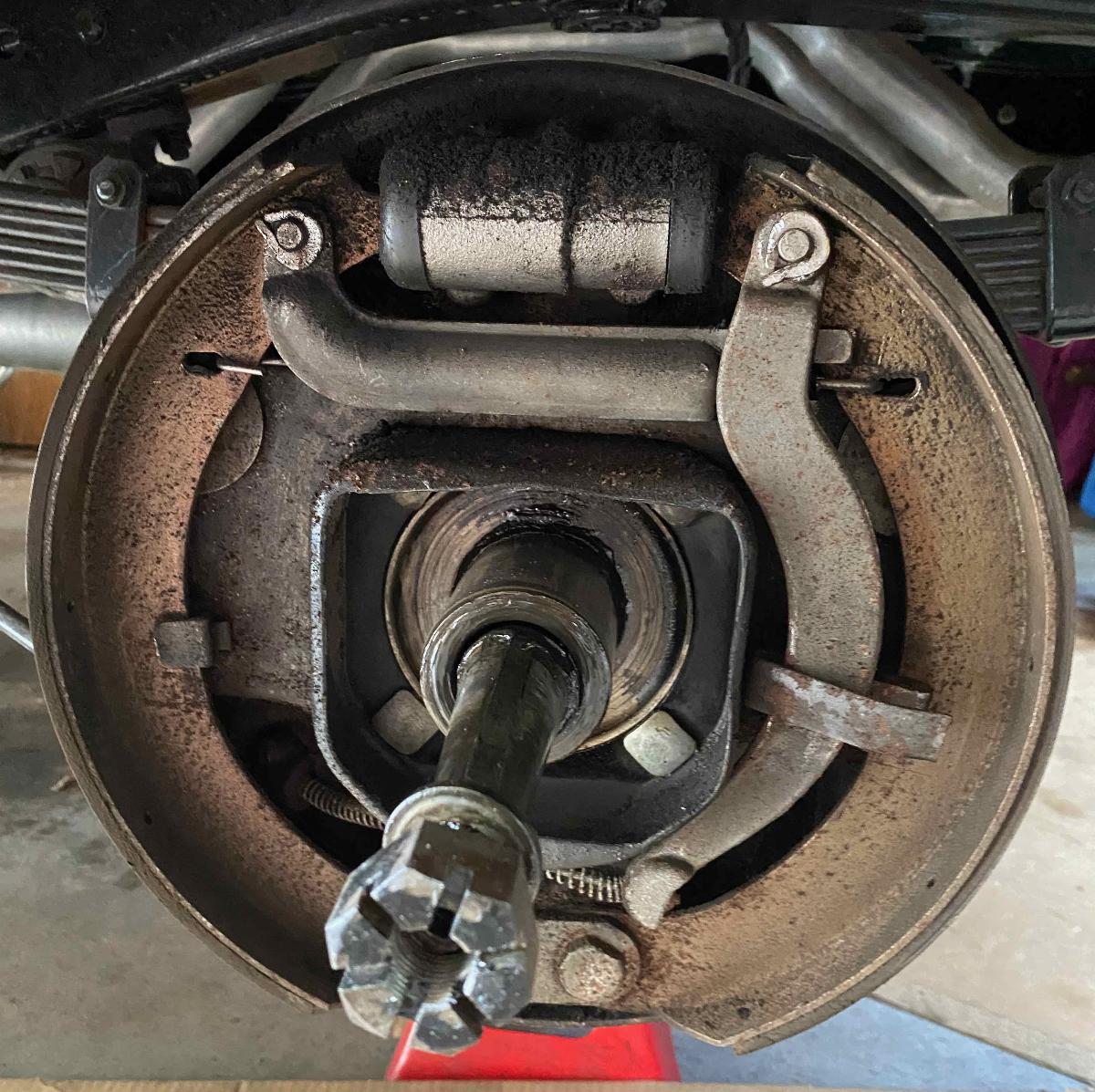

I didn't do the work on the truck, so I don't know. Looking at the pic, it appears that the arm that engages the brake shoes is tight against that box that goes around the axle, so it can't move any more. It appears that whatever spring retracts that actuation arm is missing or installed improperly? I think the other side may work, so I need to take the other wheel off and see what it looks like inside.

mhsprecher
09-11-2021 @ 5:36 PM
Member
Posts: 43
Joined: Oct 2015

After a lot of head scratching and multiple searches, I may have identified my problem. It looks like the brake assembly is not properly assembled. It looks like the prior owner or restorer reversed the actuating arm between sides, if the passenger car brakes are similar. Here is a link to a prior thread that shows how a 40 car brake is assembled. Take a look and you can see the difference. Scroll down to see the pic posted by Mike Kubarth. https://www.earlyfordv8.org/forum/viewmessages.cfm?Forum=18&Topic=4358&sortby=desc

This message was edited by mhsprecher on 9-11-21 @ 5:40 PM
