Discussion Topic: Correct Thermostats for 1940 Ford Deluxe

Shiphandling Cowboy

04-18-2026 @ 6:10 PM

reply profile send p.m.

Member
Posts: 1
Joined: Jun 2025

What is the correct thermostat for a 1940 Ford Deluxe (convertible)?

I ordered ones from C&G that said they were for a 37-48 passenger car (180), but they are too big in diameter for my car.

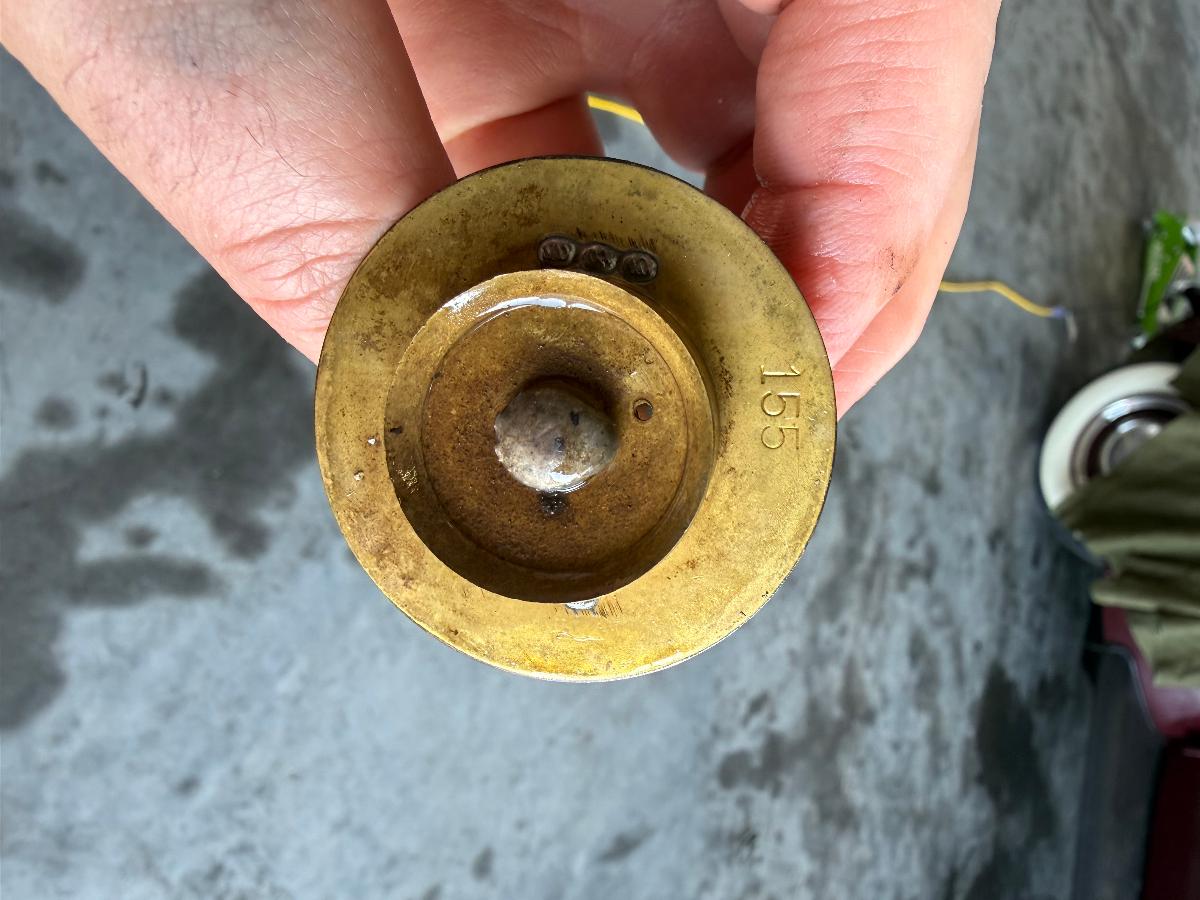

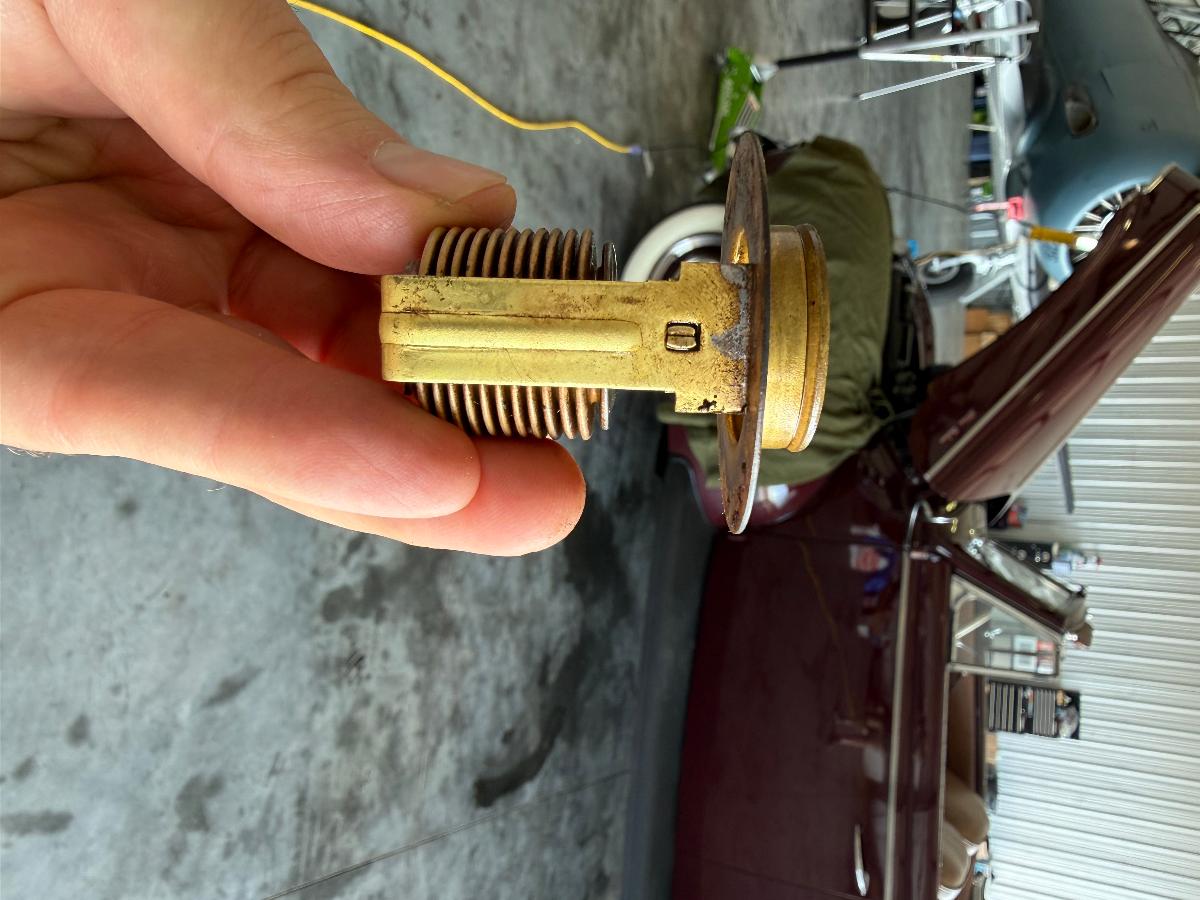

Photo is what is currently in mine, but i haven’t been able to find anything like it.

carcrazy

04-18-2026 @ 10:17 PM

reply profile send p.m.

Senior
Posts: 2077
Joined: Oct 2009

The styles of the thermostats have changed over time. The thermostats are to be located over the top of the cylinder heads within the upper radiator hoses. To install, locate the thermostat on top of the cylinder head water outlet and force the upper radiator hose over the thermostat and the cylinder head outlet port. The thermostat is supposed to be kept in the proper position by the interference fit between the O.D. of the thermostat and the I.D. of the hose. To make sure the thermostat does not move out of position, it is a good idea to use an additional hose clamp above the thermostat to keep it in position. Install the thermostat with the spring side down.
Van Pelt should have the proper 160 degree F thermostats (P.N. 11A-8575-A) for your car.

http://www.vanpeltsales.com/FH_web/engine-partsprices-pg4.htm

fordEFV8

04-22-2026 @ 10:35 AM

reply profile send p.m.

Member
Posts: 12
Joined: Apr 2026

I have a '41 deluxe would this same thermostat be compatible in it? Thanks Sam K.

carcrazy

04-22-2026 @ 2:57 PM

reply profile send p.m.

Senior
Posts: 2077
Joined: Oct 2009

Sam, yes the same thermostat would work in a 1941 Ford.

fordEFV8

04-24-2026 @ 2:05 PM

reply profile send p.m.

Member
Posts: 12
Joined: Apr 2026

tks for the reply.
