EFV-8 Club Forum / General Ford Discussion / 1935 Ford coupe engine transmission removal

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: 1935 Ford coupe engine transmission removal -- page: 1 2

trjford8

06-16-2022 @ 8:06 AM

reply profile send p.m.

Senior
Posts: 4352
Joined: Oct 2009

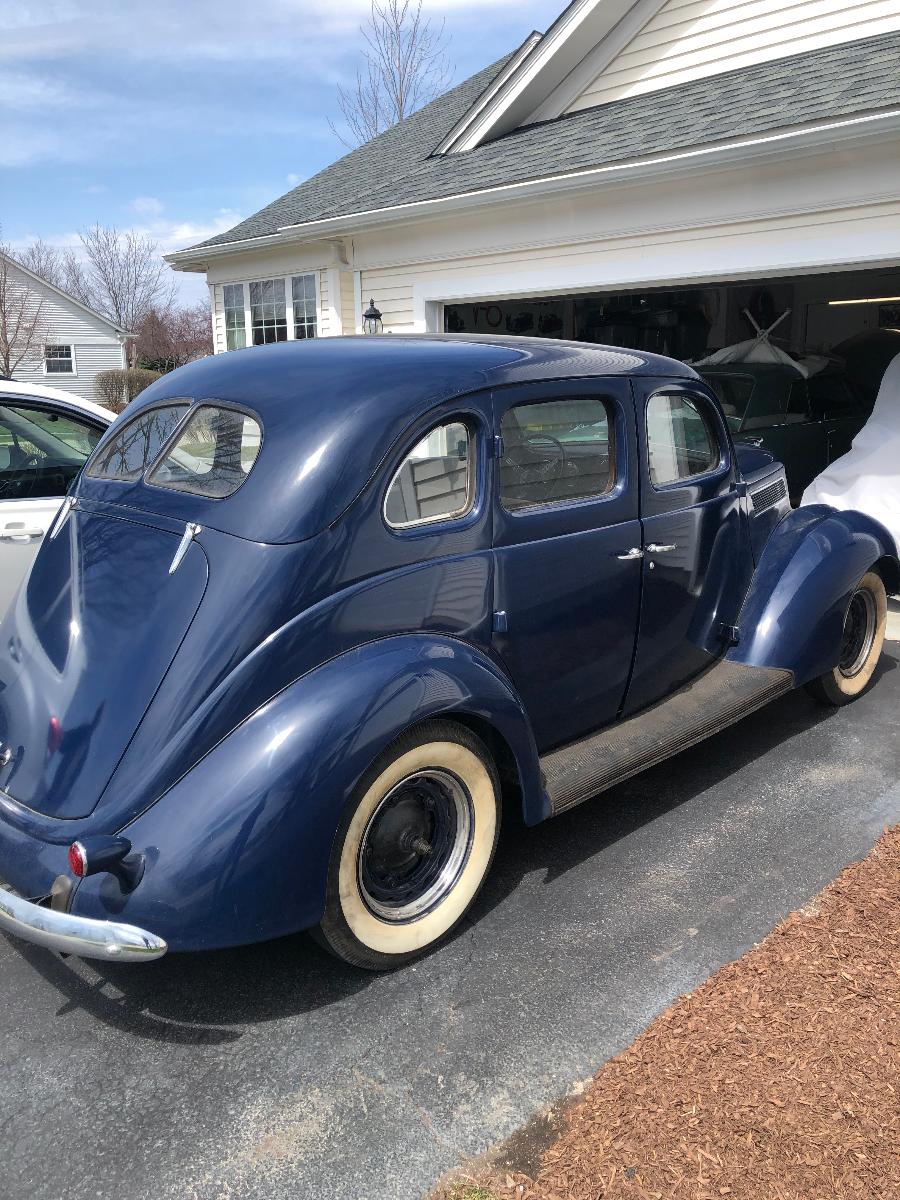

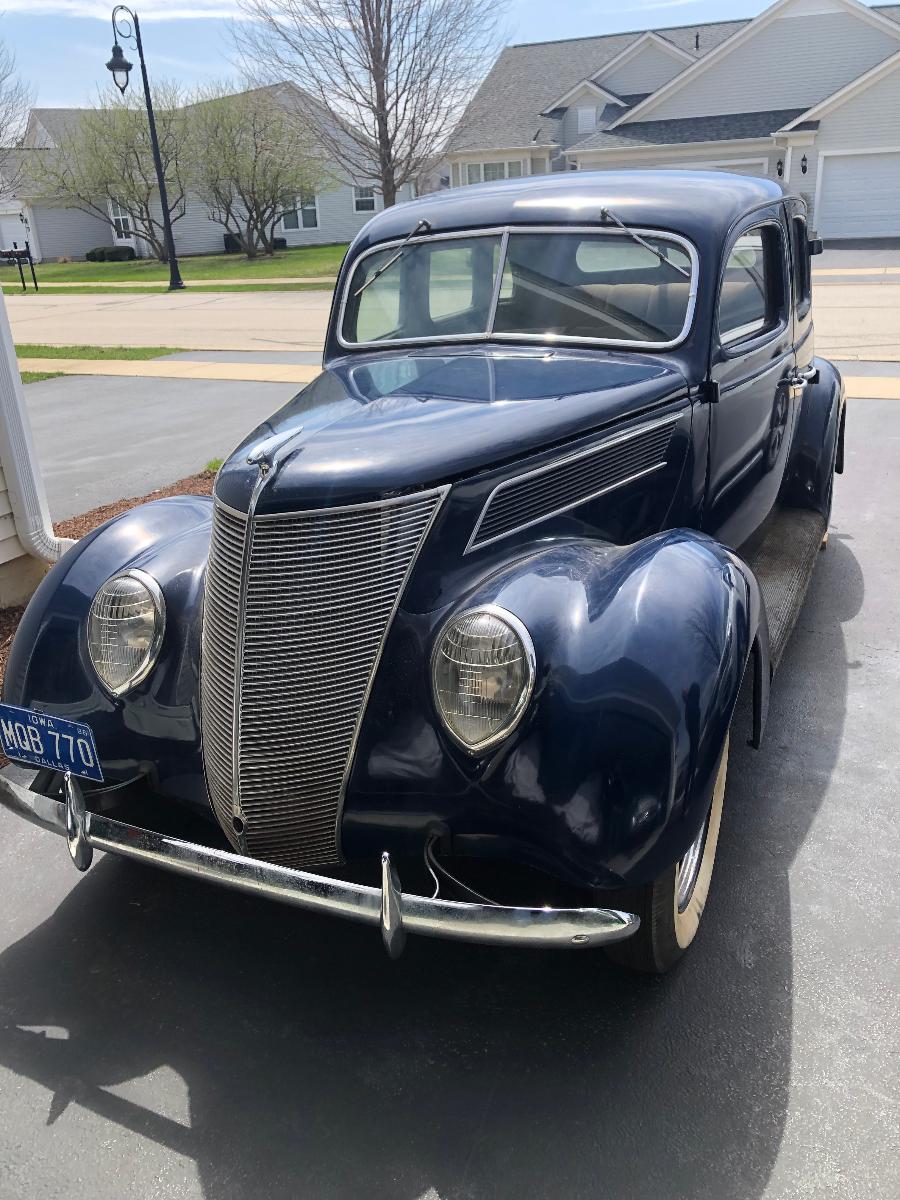

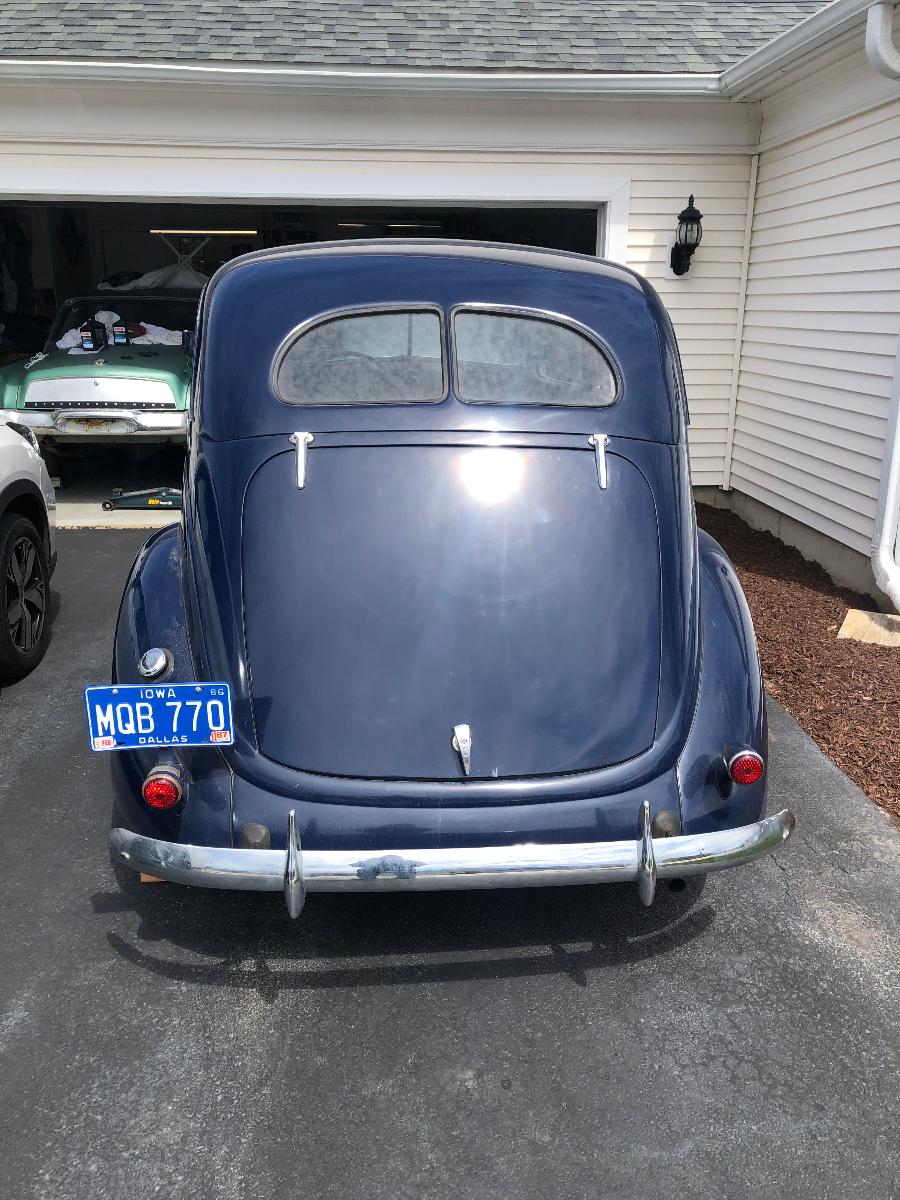

'37 fordor flat backs are not very common, they are a great tour car.

06-16-2022 @ 3:49 AM

reply profile send p.m.

Senior
Posts: 823
Joined: Oct 2009

Tim, the '37 flat back sedans are also very nice cars to own. Fordor sedans make great touring cars.

John

dean333

06-15-2022 @ 4:13 PM

reply profile send p.m.

Member
Posts: 285
Joined: May 2012

Some guys have all the luck, sheesh. Although I did recently acquire a 37 Fordoor from the fourth generation of the same family since new.

TIM CARLIG

06-10-2022 @ 12:41 PM

reply profile send p.m.

Senior
Posts: 823
Joined: Oct 2009

You have found a very nice '35 3w coupe!! Good luck with your project.

John

ford38v8

06-01-2022 @ 5:47 PM

reply profile send p.m.

Senior
Posts: 2883
Joined: Oct 2009

A top loader case with 91A shifting fork and 39-48 gears is what you need. Best top loader case was the 78 prefix, but I believe your case will also work. Transmission mounts are interchangeable, so don’t let that stop you.

Alan

mfirth

06-01-2022 @ 4:41 PM

reply profile send p.m.

Member
Posts: 209
Joined: Nov 2017

NICE car & the internals look good to me. Love it!

BIRUDY

06-01-2022 @ 1:57 PM

reply profile send p.m.

Member
Posts: 60
Joined: Jun 2022

Thanks to all for the good advice.. Engine and transmission are out all if one piece and no issues save a little spilt oil. Previous owner had filled the engine with as much oil as he could fit in.
Have removed transmission from the engine, clutch and fly wheel are out as is the starter and exhaust manifolds.
will look into getting a 39 or newer? transmission

This message was edited by BIRUDY on 6-1-22 @ 2:14 PM

nelsb01

06-01-2022 @ 11:13 AM

reply profile send p.m.

Senior
Posts: 1097
Joined: Oct 2009

And.......................heat can be your friend.

ford38v8

06-01-2022 @ 10:48 AM

reply profile send p.m.

Senior
Posts: 2883
Joined: Oct 2009

Exhaust manifold bolts can become an expensive learning experience for a mechanic unfamiliar with the Ford flathead. The subject deserves more than a quick and simple answer here, so in a nutsh*ll, keep your wits about you when dealing with them.

Alan

nelsb01

06-01-2022 @ 8:42 AM

reply profile send p.m.

Senior
Posts: 1097
Joined: Oct 2009

It sounds like you have removed the floor board and can see the transmission.
The shift mechanism has a cup on top that screws off. Have a magnetic tool near by as there is a small pin on the passenger side of the shift tower that needs to come out on the side --- and not drop into the transmission. If you are rebuilding the transmission it would be OK to fall in there -- but lets not let that happen. The transmission shifter should pull straight up.
OR...........you could just remove the bolts for the transmission top and save the above step.

There is a two piece cover around the front u-joint (just behind the rear end of the transmission) that you will have to remove to get to the u-joint. This is also part of the rear transmission mount.
With the items that you have said you have removed, you should be able to remove the engine and transmission at the same time out the front of the frame. Dont forget to remove the exhaust pipes or exhaust manifolds.
You dont have to do it as one, but if you dont, you will need to support the front of the transmission when pulling the engine.
You will of course need a 'cherry picker' to pull the engine.
You can remove the transmission once the engine is out, through the passenger compartment.

Good luck and remember, the parts are heavy (no open toe shoes)
Hope this helps --and yes, purchase the 1035-1936 Ford Book that the Club offers on the Online Store menu item on the left side of this page.
