EFV-8 Club Forum / General Ford Discussion / starter size

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: starter size -- page: 1 2

37RAGTOPMAN

04-30-2019 @ 3:05 PM

reply profile send p.m.

Senior
Posts: 1992
Joined: Oct 2009

hi
were the starter mounts to,the oil pan is that ALUMINUM,?
by the photos,.it looks like it to me.maybe a aftermarket part ? and it also looks like someone was grinding on it,
there should be no problem installing a starter, you have to tilt it, to get pass the ring gear,
my 2 cents 37 RAGTOPMAN

fenbach

04-30-2019 @ 2:35 PM

reply profile send p.m.

Member
Posts: 235
Joined: Dec 2009

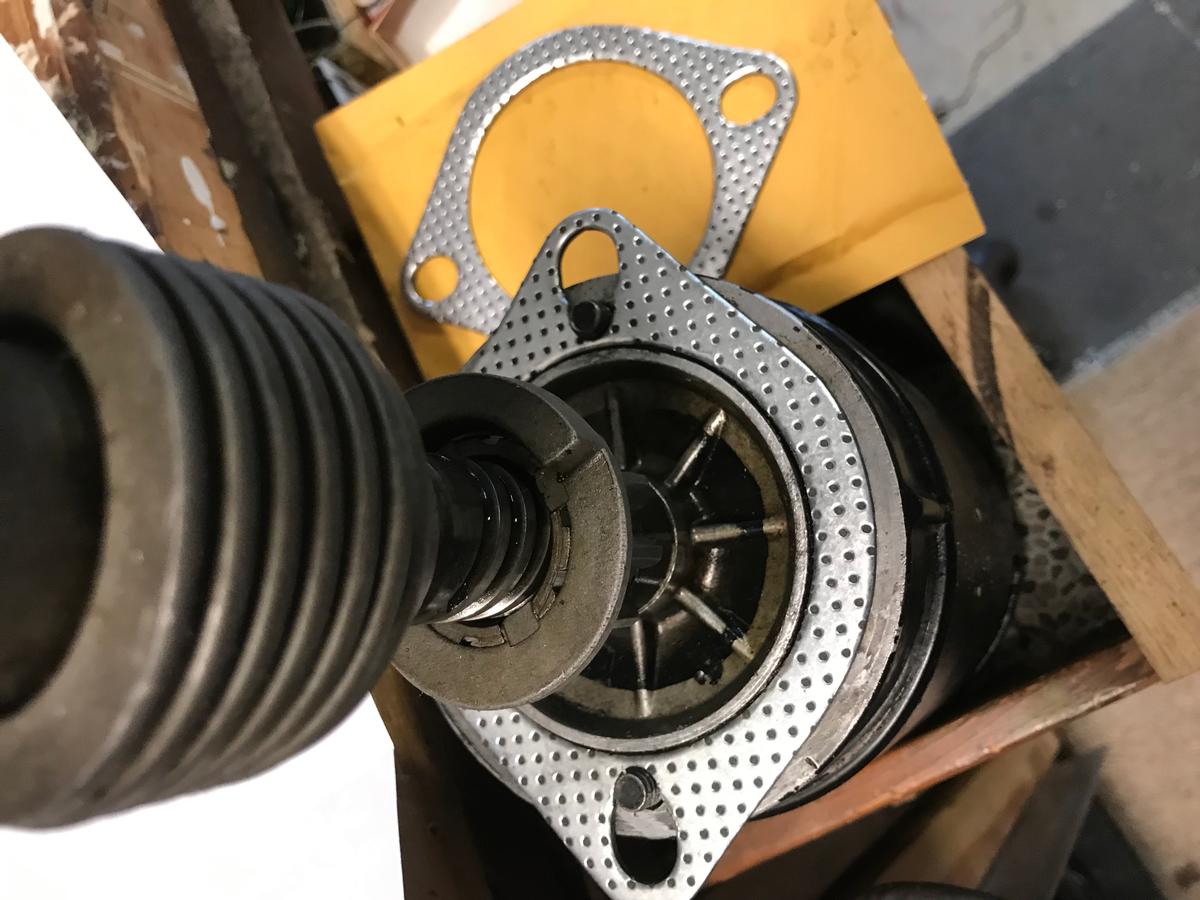

i ended up spacing the starter away from the pan with a couple exhaust gaskets. pic attached. works fine. for now anyway.
the gasket has a 3" hole which fits around the lip perfectly. I had to enlarge the bolt holes a bit.
someone obviously enlarged one side of the hole in the pan, i'm guessing to make room for the Bendix to fit thru.
I still have to wonder what the pan came off of in the first place.

40 Coupe

01-17-2019 @ 3:51 AM

reply profile send p.m.

Senior
Posts: 1801
Joined: Oct 2009

have a photo of the engine and the oil pan? You could open the hole up to 3" but I suggest removing it to do so. If you remove it it would be easier to replace it at that point.

zeke3

01-16-2019 @ 5:47 PM

reply profile send p.m.

New Member
Posts: 101
Joined: Apr 2011

Well, I went out and checked my 1937 85hp, the big engine, oil pan and the starter flange is 3" I.D. You might feel around inside, behind the plate, for the original diameter.

TomO

01-13-2019 @ 7:51 AM

reply profile send p.m.

Senior
Posts: 7386
Joined: Oct 2009

I agree with Tom. It just doesn't look right and if you started grinding to open the hole, you may not get it in the correct position to keep the starter in alignment with the flywheel.

I would look for another oil pan or use the one from the 1936 engine.

Tom

trjford8

01-13-2019 @ 7:35 AM

reply profile send p.m.

Senior
Posts: 4357
Joined: Oct 2009

That hole for the starter does not look round. It looks like somebody added a handmade plate to the pan for the starter. It's a JDLR(just don't look right) situation.

42wagon

01-13-2019 @ 3:28 AM

reply profile send p.m.

Senior
Posts: 586
Joined: Oct 2009

Okay from the pictures we know that the pan and the starter don't fit together. So now the questions.

1. Hopefully you live near other Ford folks who have pans or starters you can compare to yours.

2. Since you are replacing the engine will your 36 pan fit on the new engine?

3. Does the pan on the new engine fit correctly or was it modified in some way to fit?

4. Perhaps someone at Vanpelt Sales can tell you what you are looking at.

My suspicion is that you have a 49 or later oil pan and there once was a starter with a smaller flange that went with it.

Let us know what you find out. This is an interesting question.

cliftford

01-12-2019 @ 4:47 PM

reply profile send p.m.

Senior
Posts: 845
Joined: Jan 2014

I'm stumped, but it's pretty obvious that that starter does not fit that pan.

fenbach

01-12-2019 @ 3:04 PM

reply profile send p.m.

Member
Posts: 235
Joined: Dec 2009

Pic of starter

fenbach

01-12-2019 @ 3:02 PM

reply profile send p.m.

Member
Posts: 235
Joined: Dec 2009

Pic of hole in pan. Diameter barely 2.5”.

<< previous || next >>

PAGE: 1 2
