EFV-8 Club Forum / 1940 Ford Discussion / Water heater drill template

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: Water heater drill template -- page: 1 2

cpipp01@aol.com

01-23-2025 @ 2:17 PM

reply profile send p.m.

New Member
Posts: 152
Joined: Oct 2009

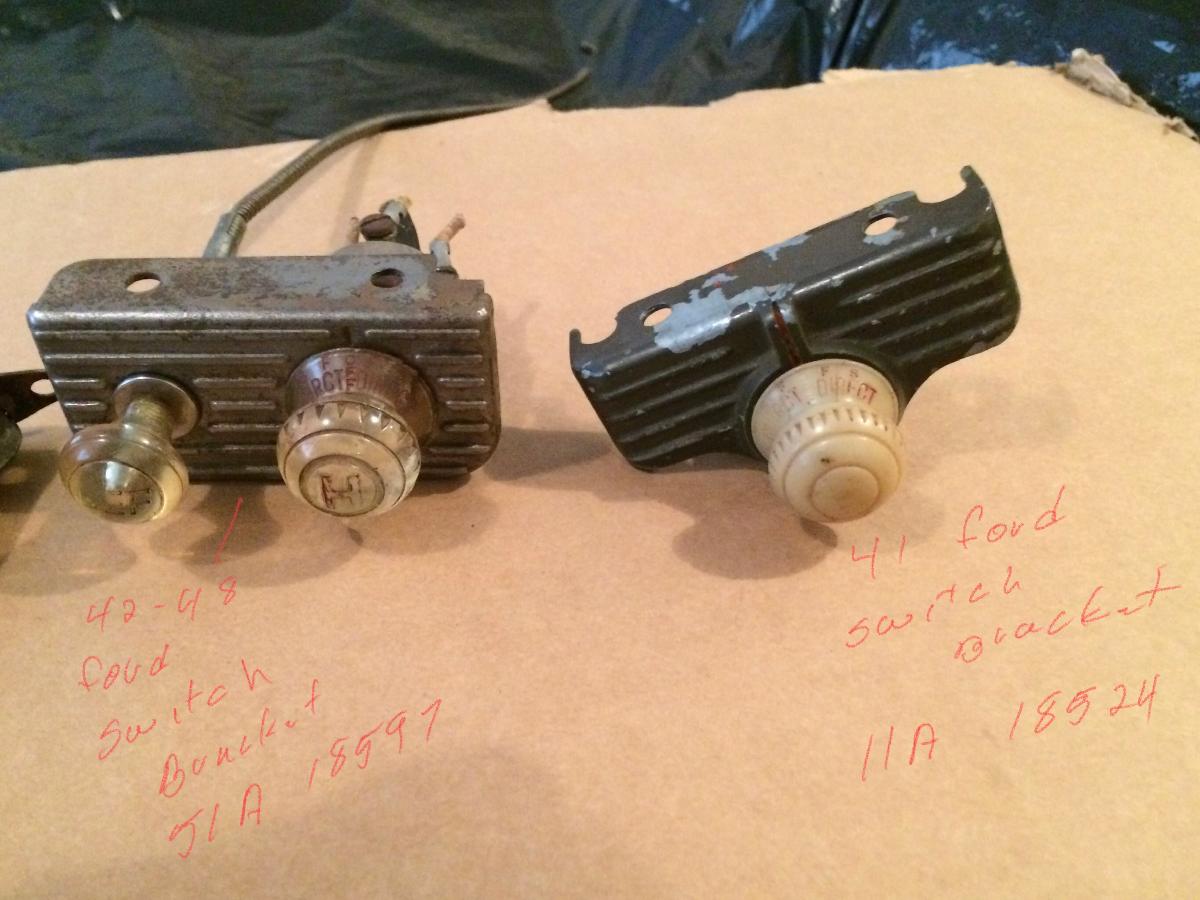

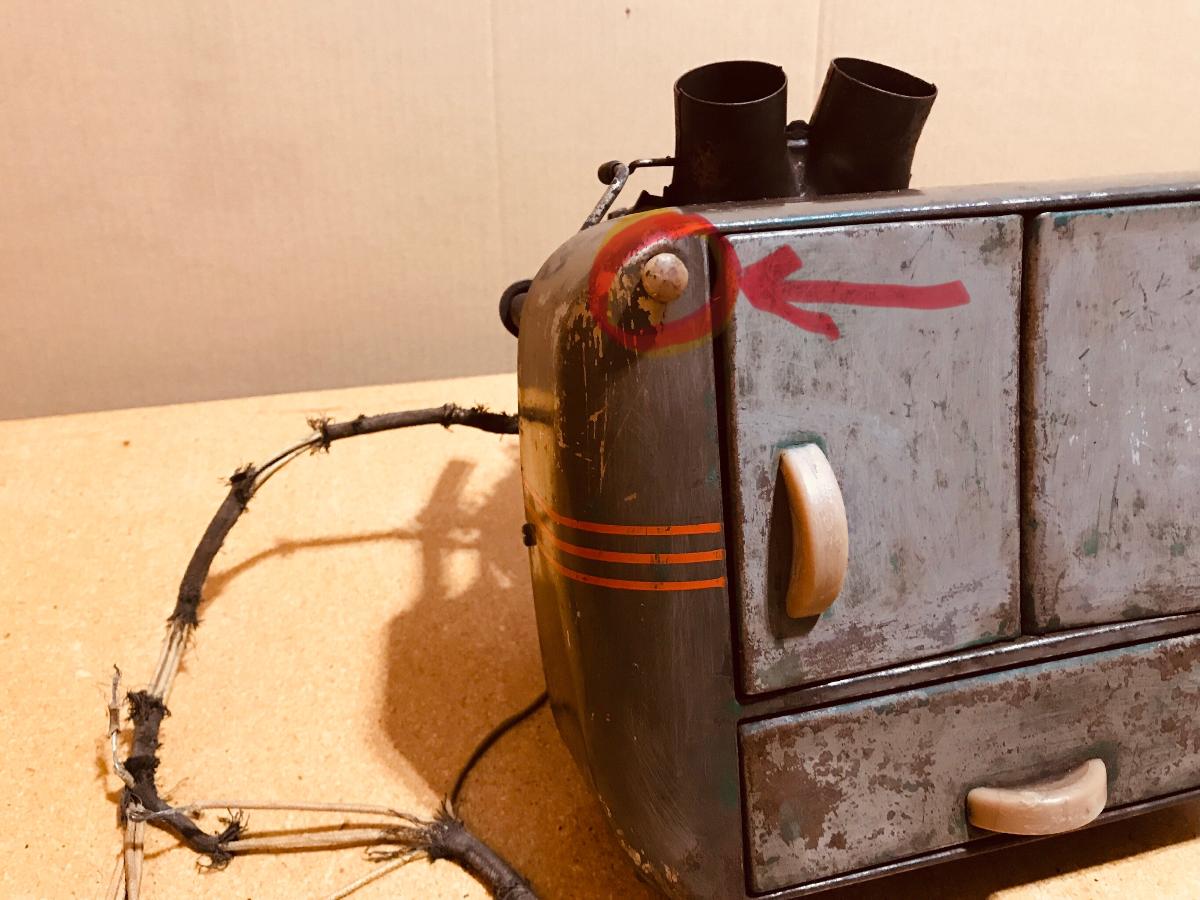

Mike see attached photo the 41 Ford heater has the defrost valve knob on the left top corner of the heater cabinet like 39 & 40 heaters. The second photo shows heater switch bracket the 41 bracket uses just the switch and the 42 - 48 has room for the switch and the defrost cable. The defrost cable attaches to the defrost valve at the back of the 42 - 48 Ford heater.

kubes40

01-23-2025 @ 5:41 AM

reply profile send p.m.

Senior
Posts: 3574
Joined: Oct 2009

What's the difference between a 41 and a 42 - 48 heater?

Mike "Kube" Kubarth

cpipp01@aol.com

01-23-2025 @ 4:51 AM

reply profile send p.m.

New Member
Posts: 152
Joined: Oct 2009

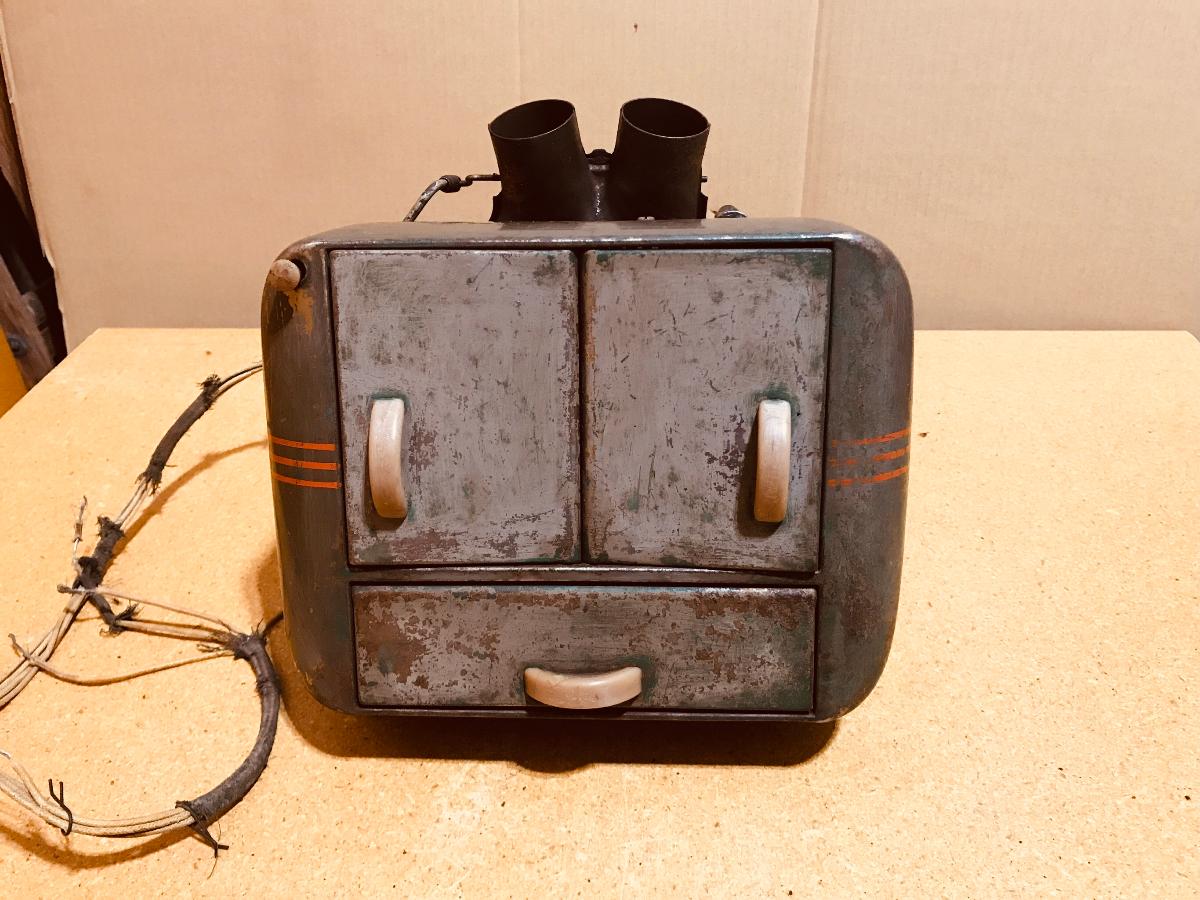

Barney you have a 42 - 48 Ford heater. I have. Attached a photo of a 41 Ford heater.

Barney

01-14-2025 @ 4:05 PM

reply profile send p.m.

New Member
Posts: 126
Joined: Nov 2015

Hello Mr. Mike,i
Thank you for the lesson on heaters. I'm encouraged about installing it in my '40, but I won't admit to doing it. If you ask me directly, I'd probably lie to you for fear of ruining your day. I'm somewhat of purist. I believe my Ford looks totally factory; however, it does have an electric fuel pump. Ooops - it also has electric motor driven wipers.
Thanks, again, Sir Mike. You're the best.
Barney

kubes40

01-12-2025 @ 4:55 PM

reply profile send p.m.

Senior
Posts: 3574
Joined: Oct 2009

I have seen MANY of the later heaters installed in '40 passenger cars. You know I'm a purist at heart, so each makes me cringe a bit.
The '41 - '48 heaters are much more common than a '40 heater and as such much less valuable. No doubt the reason so many have been installed in '40 Fords.

Mike "Kube" Kubarth

Barney

01-12-2025 @ 11:20 AM

reply profile send p.m.

New Member
Posts: 126
Joined: Nov 2015

Thank you very much for your prompt reply, Mr. Mike, although it's not what I wanted to hear. I'm guessing I would be wasting time attempting to make it fit. I'm not opposed to performing a bit of retrofitting.
Regards
Barney

kubes40

01-11-2025 @ 11:17 AM

reply profile send p.m.

Senior
Posts: 3574
Joined: Oct 2009

Barney, you have a 41 - 48 heater.

Mike "Kube" Kubarth

Barney

01-11-2025 @ 10:56 AM

reply profile send p.m.

New Member
Posts: 126
Joined: Nov 2015

Hello from Barney
Speaking of water heaters, could I ask you fine folks if you agree the pics are of a '40 heater? I bought this via our classified ads a couple years ago from, I believe, a club member. It may be for a '40, but it doesn't seem to fit in any of the positions in which I place it. Maybe I just didn't get serious enough. Any thoughts of what year(s) it fits?
Thank you
Barney

Carcheologist

01-09-2025 @ 3:18 PM

reply profile send p.m.

New Member
Posts: 135
Joined: Jan 2016

I have my genuine accessory '40 Ford water heater sitting proud in its proper location under the dash of my '40 Tudor thanks to Kube's water heater template! Kube is the man!

kubes40

11-08-2024 @ 1:11 PM

reply profile send p.m.

Senior
Posts: 3574
Joined: Oct 2009

You are very welcome.

Mike "Kube" Kubarth
