EFV-8 Club Forum / General Ford Discussion / 1935 outside door handles

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: 1935 outside door handles -- page: 1 2

Don Rogers

01-06-2026 @ 9:40 AM

reply profile send p.m.

Senior
Posts: 515
Joined: Oct 2009

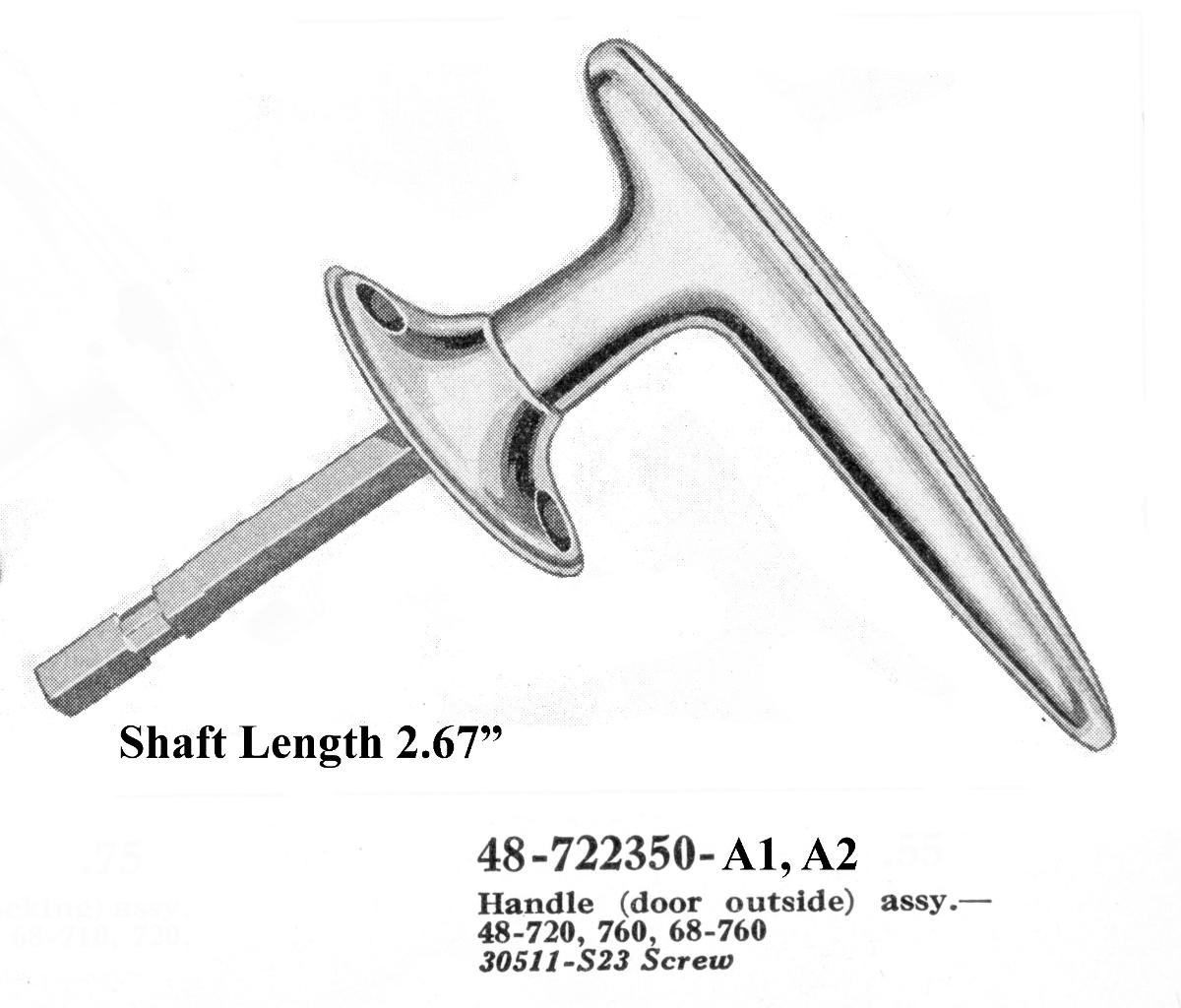

Here is what your handle should look like

Gmcbuffalo35

01-05-2026 @ 3:08 PM

reply profile send p.m.

Member
Posts: 7
Joined: Dec 2025

3 window coupe

Don Rogers

01-03-2026 @ 5:37 AM

reply profile send p.m.

Senior
Posts: 515
Joined: Oct 2009

I agree with V8'er. There are 10 different door handles foe 1935. What is your body style??

v8er

01-02-2026 @ 5:42 AM

reply profile send p.m.

Member
Posts: 46
Joined: Oct 2009

1935 outside door handles are different for different body styles. What is the body style for your car?

carcrazy

01-01-2026 @ 3:08 PM

reply profile send p.m.

Senior
Posts: 1989
Joined: Oct 2009

If you want to use the handle you have, you will have to weld extra material all around the cylindrical section of the square shaft, grind off the excess material to allow a square crossection of the shaft to engage the lever.

Gmcbuffalo35

01-01-2026 @ 1:53 PM

reply profile send p.m.

Member
Posts: 7
Joined: Dec 2025

Triford8 and carcrazy
Here is a door handle 35 that I bought off of eBay in photo one you can see the rounded portion on the shaft photo two shows that the length is too long as it come past the inter part of the door. So cutting it would not be an option. Trying to to get the shaft out of the handle I broke the fastener plate. The 36 deluxe hands I have are the same length.
Greg

Gmcbuffalo35

01-01-2026 @ 11:11 AM

reply profile send p.m.

Member
Posts: 7
Joined: Dec 2025

Thanks carry

Gmcbuffalo35

01-01-2026 @ 11:07 AM

reply profile send p.m.

Member
Posts: 7
Joined: Dec 2025

The shaft is square but on the 36’s handles the portion that turns the mechanism is rounded so in order to open the door I have to pull the handle out 1/2”.

trjford8

01-01-2026 @ 9:43 AM

reply profile send p.m.

Senior
Posts: 4362
Joined: Oct 2009

Is it the shaft that goes into the latch that is too long? If so you can cut it off to fit.

carcrazy

12-31-2025 @ 5:29 PM

reply profile send p.m.

Senior
Posts: 1989
Joined: Oct 2009

Try Obsolete Ford Parts

https://ford.obsoleteandclassicautoparts.com/catalog/early-ford-v8?qad=S933l56hdA86413bH34dnD4KVk441sB74#page/178
