EFV-8 Club Forum / General Ford Discussion / 36 brake rod anti rattle clips

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: 36 brake rod anti rattle clips -- page: 1 2

Rob36

04-25-2025 @ 11:22 AM

reply profile send p.m.

Member
Posts: 17
Joined: Mar 2025

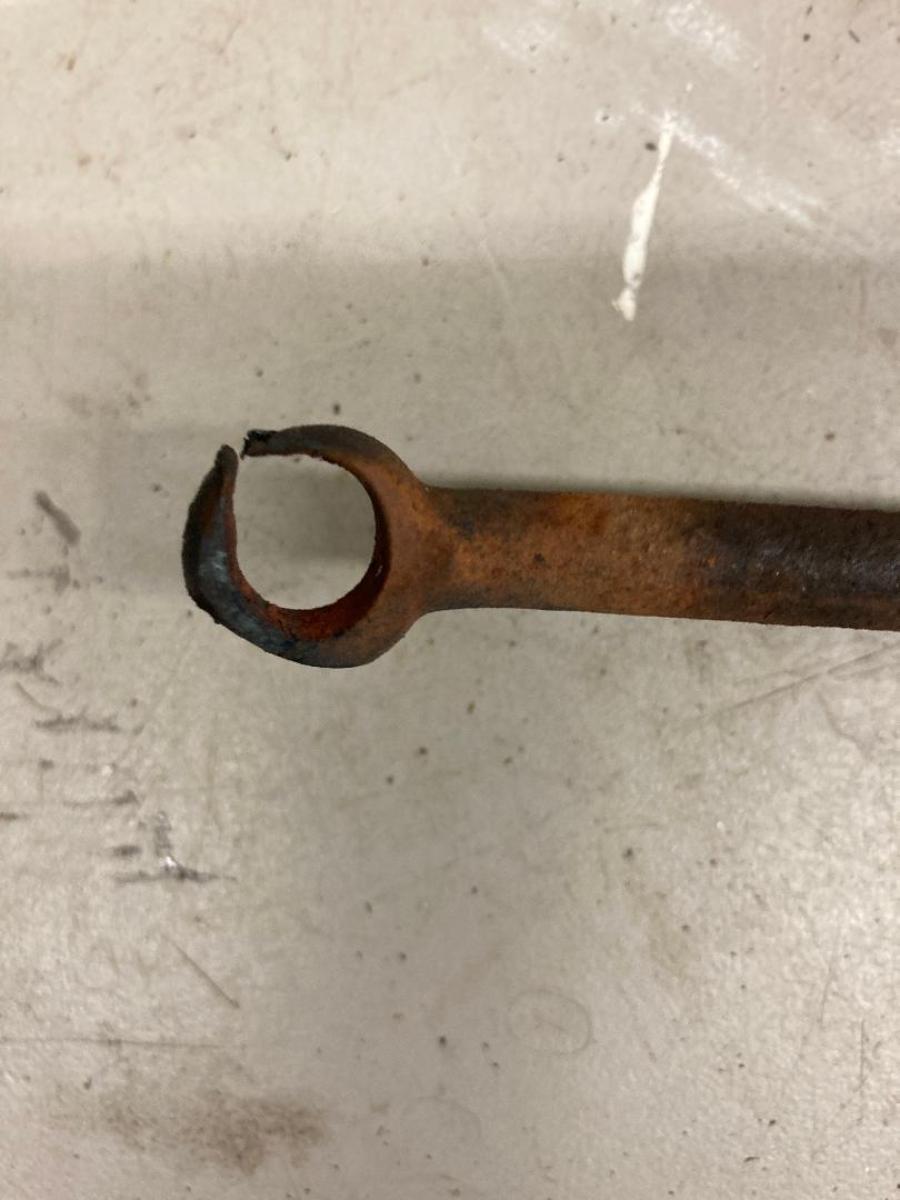

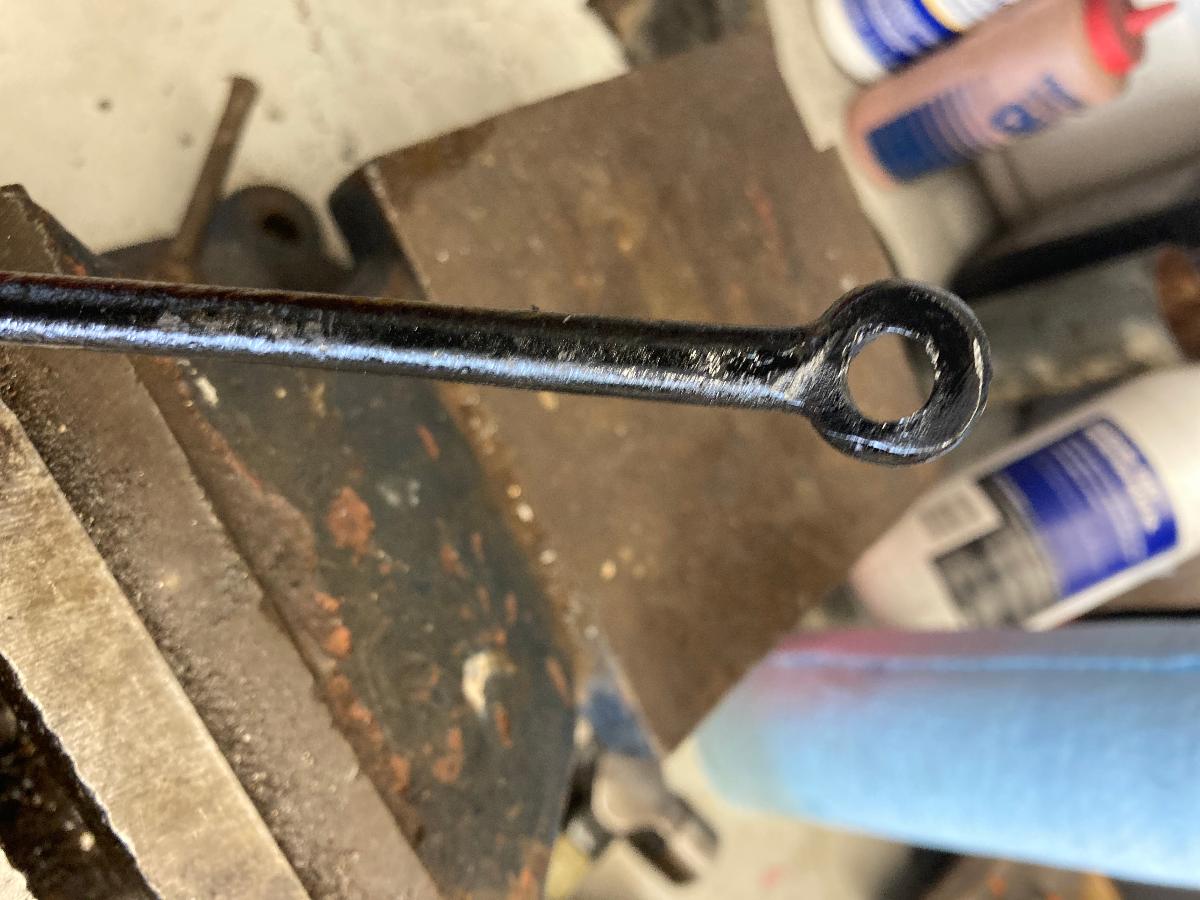

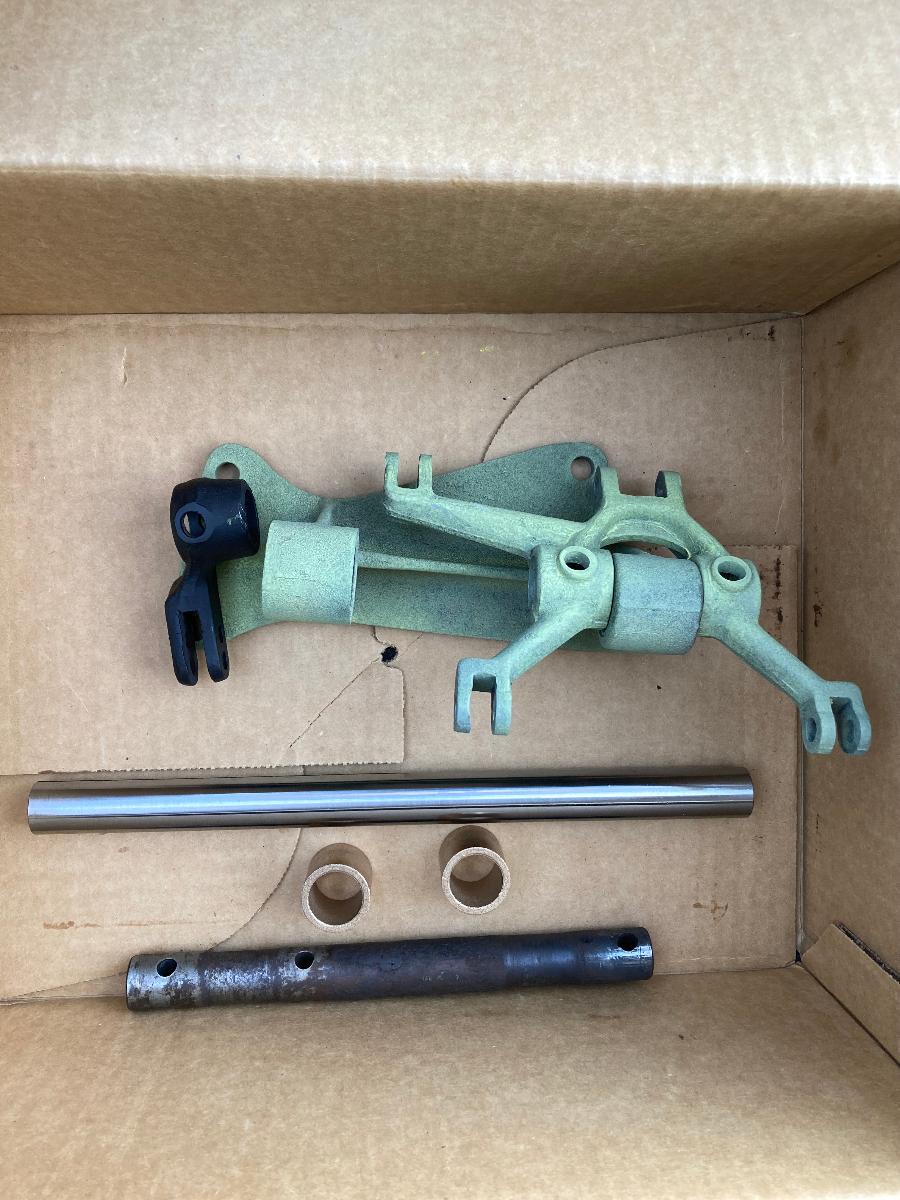

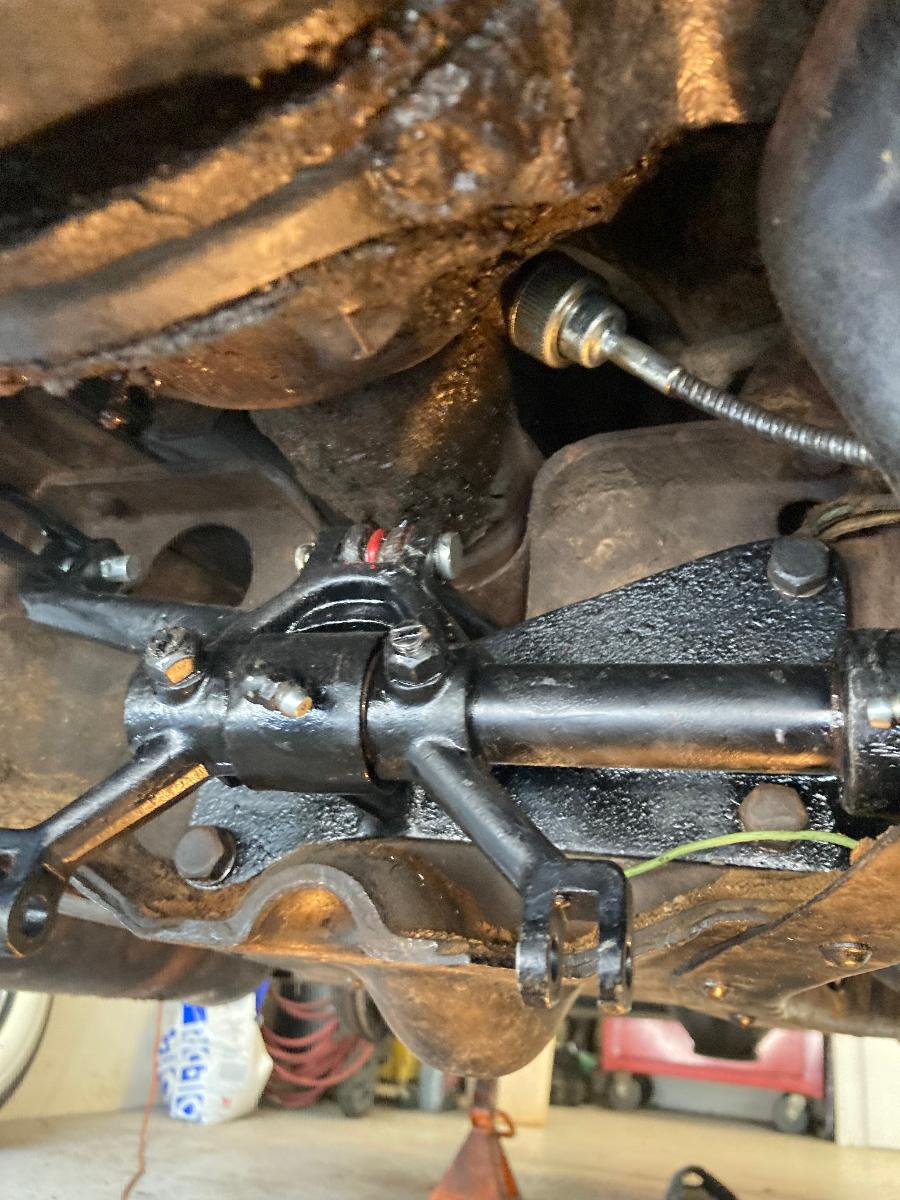

Well I finished the brake cross shaft rebuild and repaired the brake rods. One thing I learned is cotter pins were made a lot stouter 90 years ago

Rob36

04-03-2025 @ 1:37 PM

reply profile send p.m.

Member
Posts: 17
Joined: Mar 2025

Thanks but different.

carcrazy

04-02-2025 @ 8:49 PM

reply profile send p.m.

Senior
Posts: 1991
Joined: Oct 2009

Don't know if this assembly will work for your application but I found this on the Third Gen Automotive website.

https://thirdgenauto.com/product/nos-1935-1936-1937-ford-truck-brake-cross-shaft-assembly-51-2485-d-4-11/

nelsb01

04-02-2025 @ 1:44 PM

reply profile send p.m.

Senior
Posts: 1103
Joined: Oct 2009

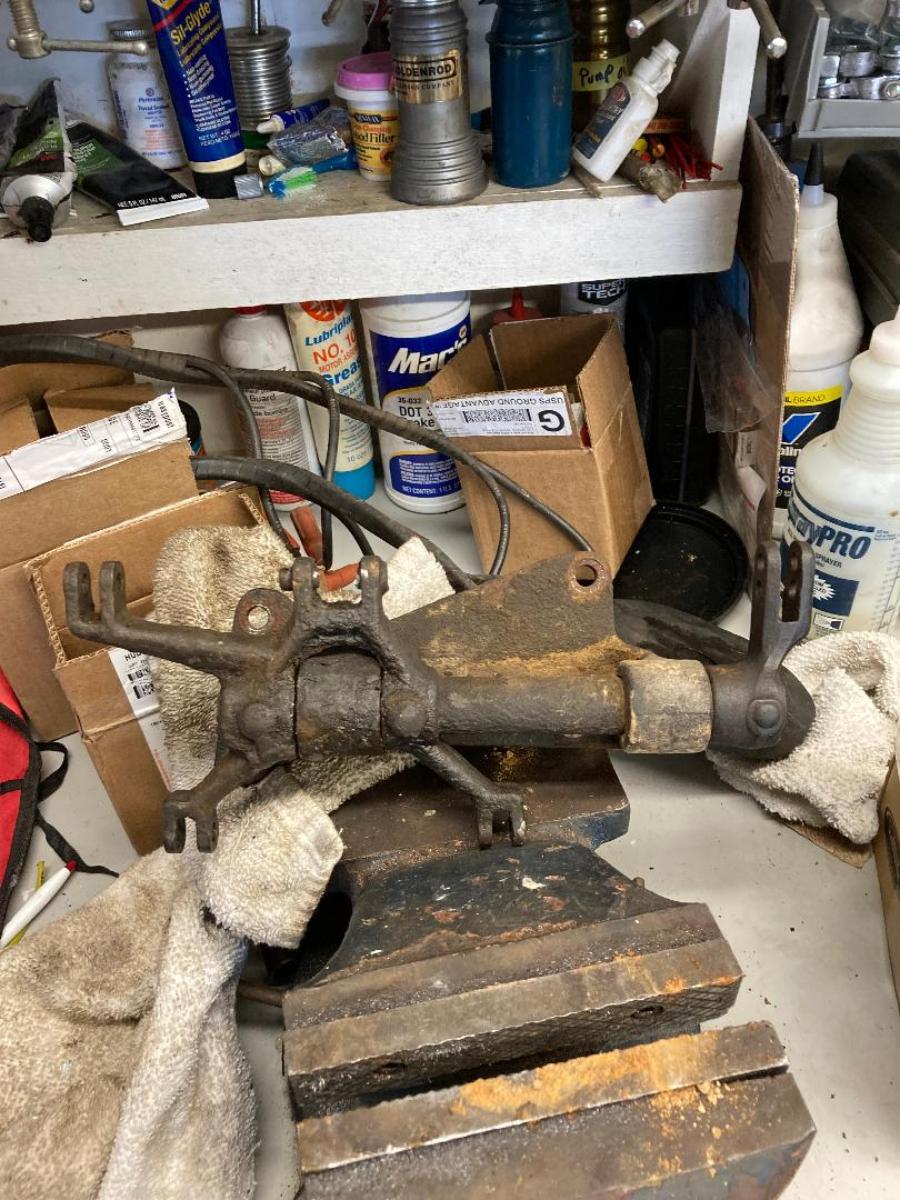

If you are talking about brake cross shafts --- they are hard to find. You can rebuild the cross shaft assembly if you can find the bushings.

And the bushings are now also hard to find. Southside Obsolete may have them. You could check.
I dont think that the major reproduction companies have them.

Rob36

04-02-2025 @ 2:34 AM

reply profile send p.m.

Member
Posts: 17
Joined: Mar 2025

I’ve been looking but can’t seem to find one that doesn’t need rebuilding. Any suggestions as to where to look?

This message was edited by Rob36 on 4-2-25 @ 2:56 AM

Rob36

04-02-2025 @ 2:32 AM

reply profile send p.m.

Member
Posts: 17
Joined: Mar 2025

Thanks I found an article that said to use that procedure

nelsb01

04-01-2025 @ 4:32 PM

reply profile send p.m.

Senior
Posts: 1103
Joined: Oct 2009

Since you have the cross shaft out --
Dont forget to install the 48- 2472 brake rod retracting spring. It goes down the center of the cross shaft housing (center frame cross member).
And.............it is a bugger to install.

I had to use a small come-along and a strong piece of wire to stretch it to fit, but it certainly makes a difference. Once the hook end was through the hole and attached, I cut off the wire.
You hook the vertical end in the back of the cross shaft housing and then stretch the spring toward the front to attach the hook end.

v8er

04-01-2025 @ 4:24 PM

reply profile send p.m.

Member
Posts: 46
Joined: Oct 2009

The anti rattlers are not original Ford parts. The brake cross shaft assembly can be found new old stock.

Rob36

04-01-2025 @ 3:07 PM

reply profile send p.m.

Member
Posts: 17
Joined: Mar 2025

That’s what I was thinking too. I can’t find them mentioned anywhere. Thanks

carcrazy

04-01-2025 @ 1:21 PM

reply profile send p.m.

Senior
Posts: 1991
Joined: Oct 2009

Those don't show up on any of the drawings of the brake systems that I have found. They may have been added to your car to silence the noise caused by worn parts

<< previous || next >>

PAGE: 1 2
