EFV-8 Club Forum / General Ford Discussion / 1935 Speedo issue/output gear

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: 1935 Speedo issue/output gear -- page: 1 2

Howie1935

10-23-2024 @ 5:45 AM

reply profile send p.m.

Member
Posts: 34
Joined: Sep 2024

trans speedo gear is worn. I'll have to pull the rear axle...anyone have step by step procedure?
Any thing to check during the Removal and Reinstallation process?

Howie1935

10-21-2024 @ 10:11 AM

reply profile send p.m.

Member
Posts: 34
Joined: Sep 2024

Well good news/bad news. I got the new 19-tooth gear for turtle and replaced unit. Speedo works fantastic. However, after about 5-miles, started hearing a slight "clicking", it increased in amplitude to a point I could also feel on the stick. Speedo was not reading after clicking got louder.

I'll need to remove the rear axle to get to the back of trans.

DOES anyone by chance have work instructions on the REMOVE AND REPLACE the rear axle, torque tube, and the removal and replacement of the output gear for the speedo?

Thanks all for the help.

Howie1935

10-17-2024 @ 6:44 AM

reply profile send p.m.

Member
Posts: 34
Joined: Sep 2024

Gear in turtle going back on trans today. Hoping we're back in business.
Thanks for the help.
Dennis

Howie1935

10-16-2024 @ 12:43 PM

reply profile send p.m.

Member
Posts: 34
Joined: Sep 2024

Replacement gear in Turtle arrived. It is a lot taller gears. I'm going to try to just insert and see if the trans gear still has some teeth (height) left to allow normal speedo operation. I think it will work fine.
Dennis

Howie1935

10-14-2024 @ 10:46 AM

reply profile send p.m.

Member
Posts: 34
Joined: Sep 2024

Good information, replacement gear on the way. I'll try to take a peek at the output gear for wear.

40 Coupe

10-14-2024 @ 5:07 AM

reply profile send p.m.

Senior
Posts: 1800
Joined: Oct 2009

Appears the gear on the turtle is stripped out, the gear teeth should not be concave, and the bad gear should rotate. There is a gear on the driveshaft that drives the worn gear it too may need replacement. If so the rear end of the car has to be moved rearward to be able to get the driveshaft gear out. Suggest you remove the transmission floor cover and look at the driveshaft gear. The teeth on both of the gears should be flat and not concave. The top of the turtle should be marked as to the number of teeth on the bad gear. You should be able to find replacements. check with Third Gen Auto in Tenn.

This message was edited by 40 Coupe on 10-15-24 @ 4:34 AM

Howie1935

10-13-2024 @ 11:18 AM

reply profile send p.m.

Member
Posts: 34
Joined: Sep 2024

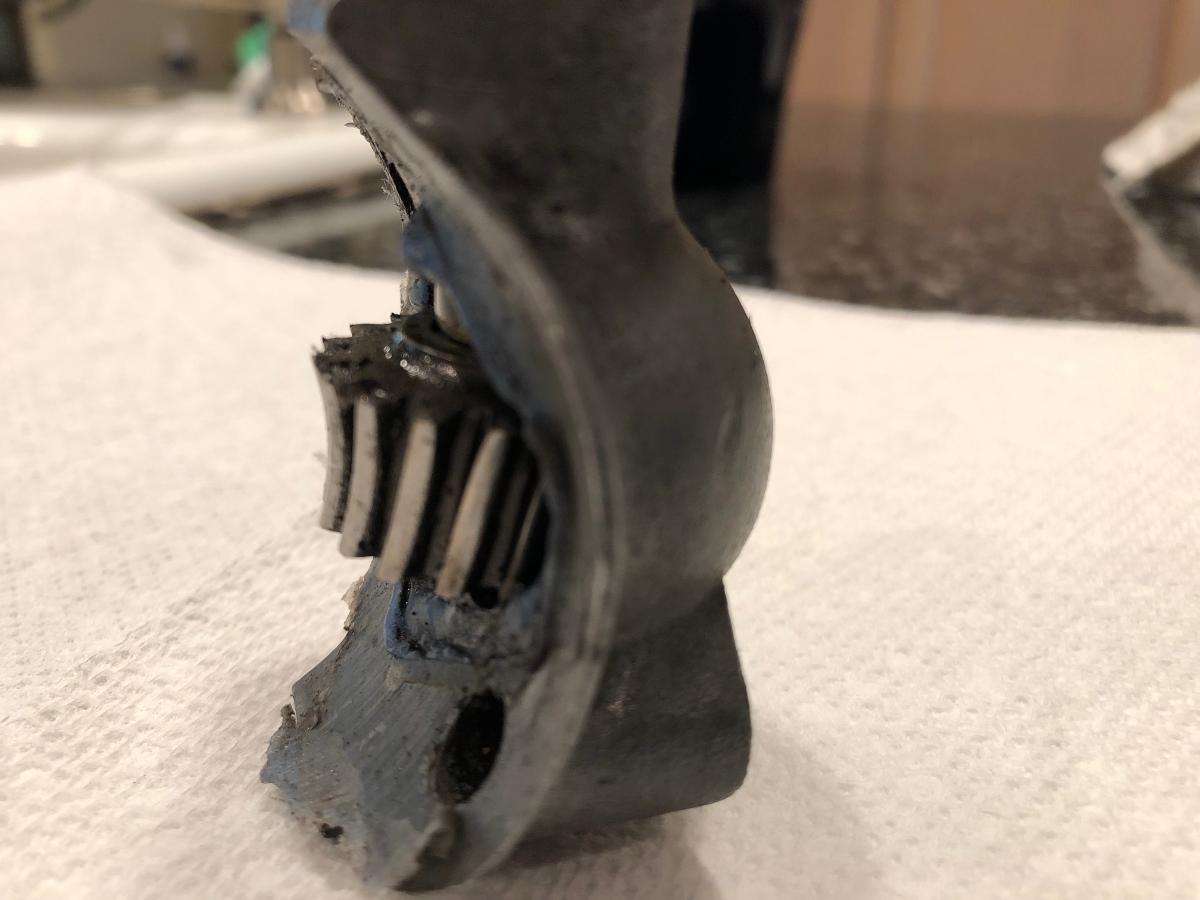

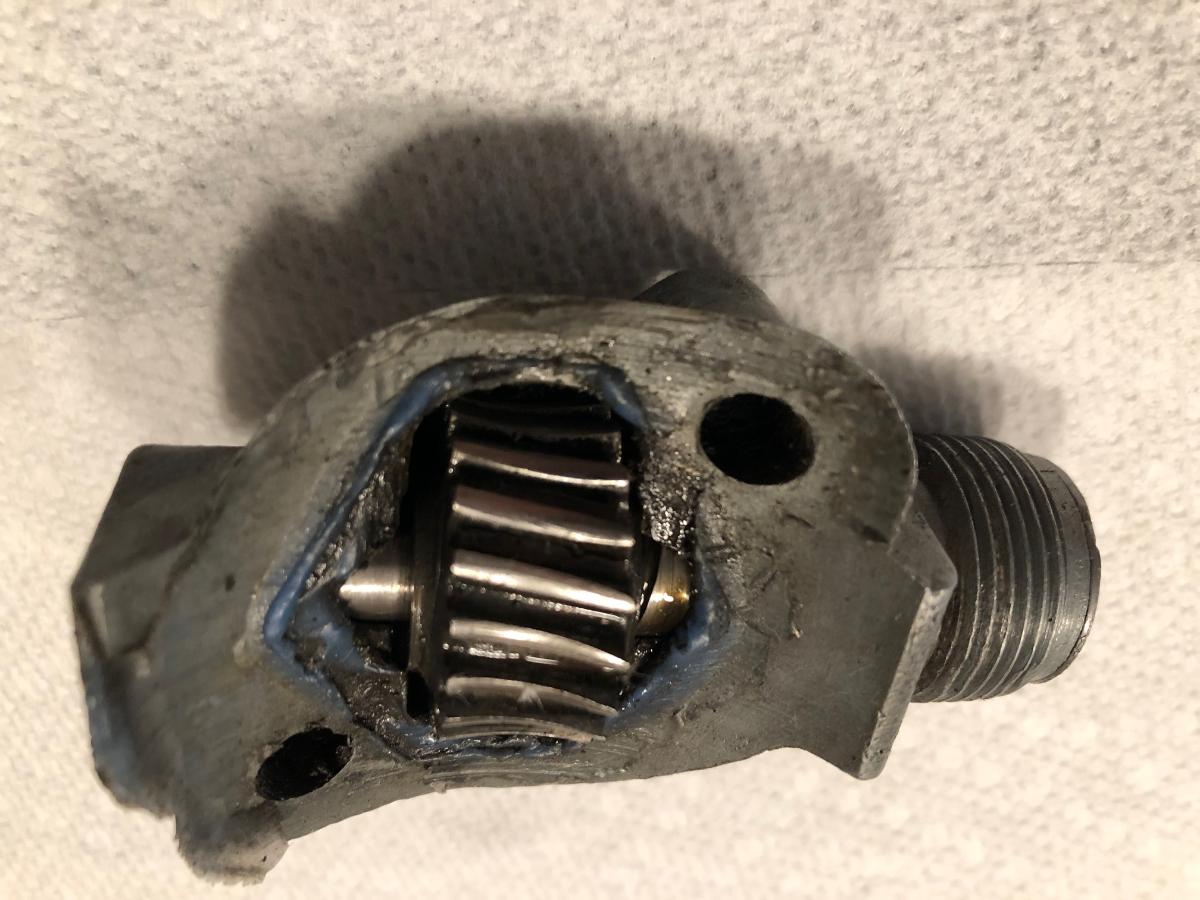

I have removed the turtle. Note no turtle cover, just reached up from below and removed the two 7/16" hex bolts.
It had some gasket sealer instead of an actual gasket, seemed sealed fine.

See images. a
I see tops of the curved gear about 1/16" wide and only about 1/8" deep. Can anyone help me to determine if just worn out and not engaged anymore?

Dennis

Howie1935

09-22-2024 @ 10:39 AM

reply profile send p.m.

Member
Posts: 34
Joined: Sep 2024

Nope, other things have come up. Brakes are bad. The brakes have been updated to juice system. I found a few leaks and repaired. Replaced bad wheel cylinder and some lines. Also replaced front shoes. Now brakes go from nothing to dragging hard when I do slightest adjustment. Sort of at a dead end.

v8teditor

09-17-2024 @ 6:14 AM

reply profile send p.m.

New Member
Posts: 147
Joined: Dec 2009

Did you get it fixeed?

Howie1935

09-12-2024 @ 6:07 AM

reply profile send p.m.

Member
Posts: 34
Joined: Sep 2024

Thanks, starting on this today. May not get through it all.
