EFV-8 Club Forum / General Ford Discussion / sub-rails and floorpan factory install

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: sub-rails and floorpan factory install -- page: 1 2

shogun1940

10-30-2016 @ 2:12 AM

reply profile send p.m.

Member
Posts: 464
Joined: Feb 2010

I really do not know if they are different, carpenters looked like the original so I bought them,, they are Paul Bradley floor pans, what nice man he is. If I was buying today I would I would probably go with carpenters one piece , I have a lot of welding a head of me. Carpenter was not making them when I stopped at P. B. Place.

MICHV8

10-27-2016 @ 5:00 AM

reply profile send p.m.

Senior
Posts: 500
Joined: Jul 2010

Shogun1940
Just saw your request to Mike regarding underneath floorpan photos....are the rockers by Carpenter different from the EMS offering?

MICHV8

10-27-2016 @ 4:56 AM

reply profile send p.m.

Senior
Posts: 500
Joined: Jul 2010

Shogun1940
That is a nice looking floorpan...is it a Paul Bradley product?

MICHV8

10-27-2016 @ 4:53 AM

reply profile send p.m.

Senior
Posts: 500
Joined: Jul 2010

CharlieStephens:
My question is for 32-48 Fords in general, but the particular car is a 39 which Mike has addressed and I believe holds true for all the above years...

shogun1940

10-26-2016 @ 5:15 PM

reply profile send p.m.

Member
Posts: 464
Joined: Feb 2010

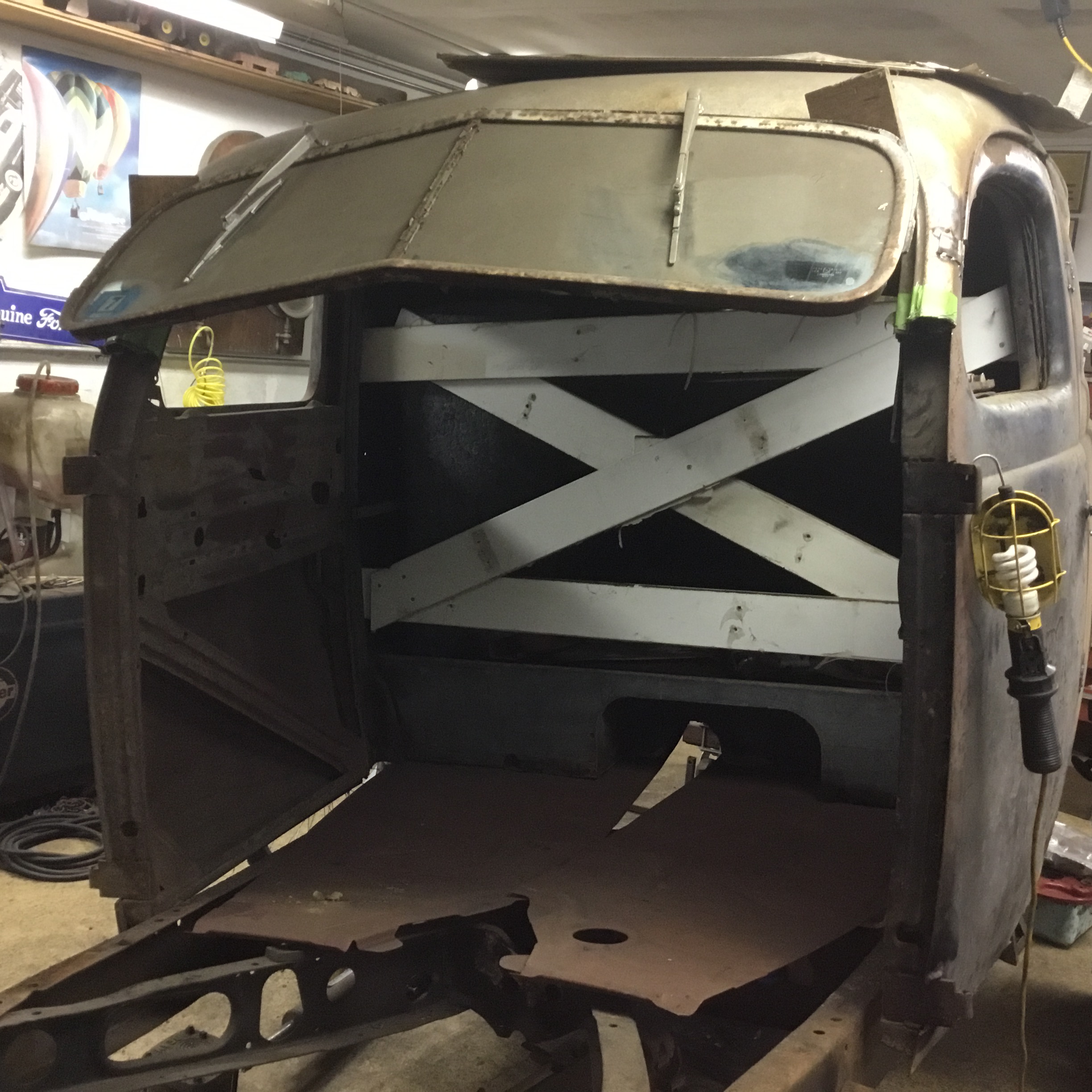

This how i am doing it

CharlieStephens

10-26-2016 @ 10:39 AM

reply profile send p.m.

Senior
Posts: 922
Joined: Oct 2009

Mitch,

It might help if you added the year and body type of your vehicle to your profile and to your post.

Charlie Stephens

TomO

10-26-2016 @ 10:00 AM

reply profile send p.m.

Senior
Posts: 7384
Joined: Oct 2009

Looking at the drawings on Drake's site, the 1932 floor pan appears to be welded on top of the subrails.

It looks as if that is the only one that has the sub-rails, but check with the 32 Adviser for the correct answer.

Tom

kubes40

10-26-2016 @ 6:20 AM

reply profile send p.m.

Senior
Posts: 3573
Joined: Oct 2009

Once again, I can only answer for 39 - 40. The sub-rails are set atop the pan. They are welded.

MICHV8

10-26-2016 @ 6:05 AM

reply profile send p.m.

Senior
Posts: 500
Joined: Jul 2010

Tom()
For instance, Drake sells separate 32 sub-rails (RH B-20022/LH B-20023) and also the complete floor (B-20019, which includes the floorpan) made by United Pacific. My question is: does the floorpan sit under the sub-rail or on top. Kubes seems to suggest that the floorpan is welded underneath the sub-rail, but you seem to suggest that the floorpan sits on top of the sub-rail...am I interpreting both answers correctly?

This message was edited by MICHV8 on 10-26-16 @ 6:06 AM

TomO

10-25-2016 @ 9:10 AM

reply profile send p.m.

Senior
Posts: 7384
Joined: Oct 2009

I don't know what you mean by subrails, but the floor pan on the years covered by the EFV-8 Club all sat on top of the frame rails.

Tom
