EFV-8 Club Forum / 1940 Ford Discussion / Battery Gauge:

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: Battery Gauge: -- page: 1 2

fortyford

06-29-2019 @ 6:20 PM

reply profile send p.m.

Member
Posts: 206
Joined: Nov 2009

Tom I sent you a PM.

fortyford

06-28-2019 @ 11:54 AM

reply profile send p.m.

Member
Posts: 206
Joined: Nov 2009

Thanks Tom for all your help on this problem. Russ

TomO

06-28-2019 @ 6:56 AM

reply profile send p.m.

Senior
Posts: 7244
Joined: Oct 2009

Yes that diagram shows the voltages range for each of the colors on the gauge. These meters are accurate enough to determine if everything is working OK.

Good work in diagnosing the problem without spending useless $$$$ on unneeded parts replacement.

Most 1940's have the grounding cable from the firewall to the engine connected to an intake bolt. This give a better ground to the generator.

Tom

fortyford

06-27-2019 @ 6:54 PM

reply profile send p.m.

Member
Posts: 206
Joined: Nov 2009

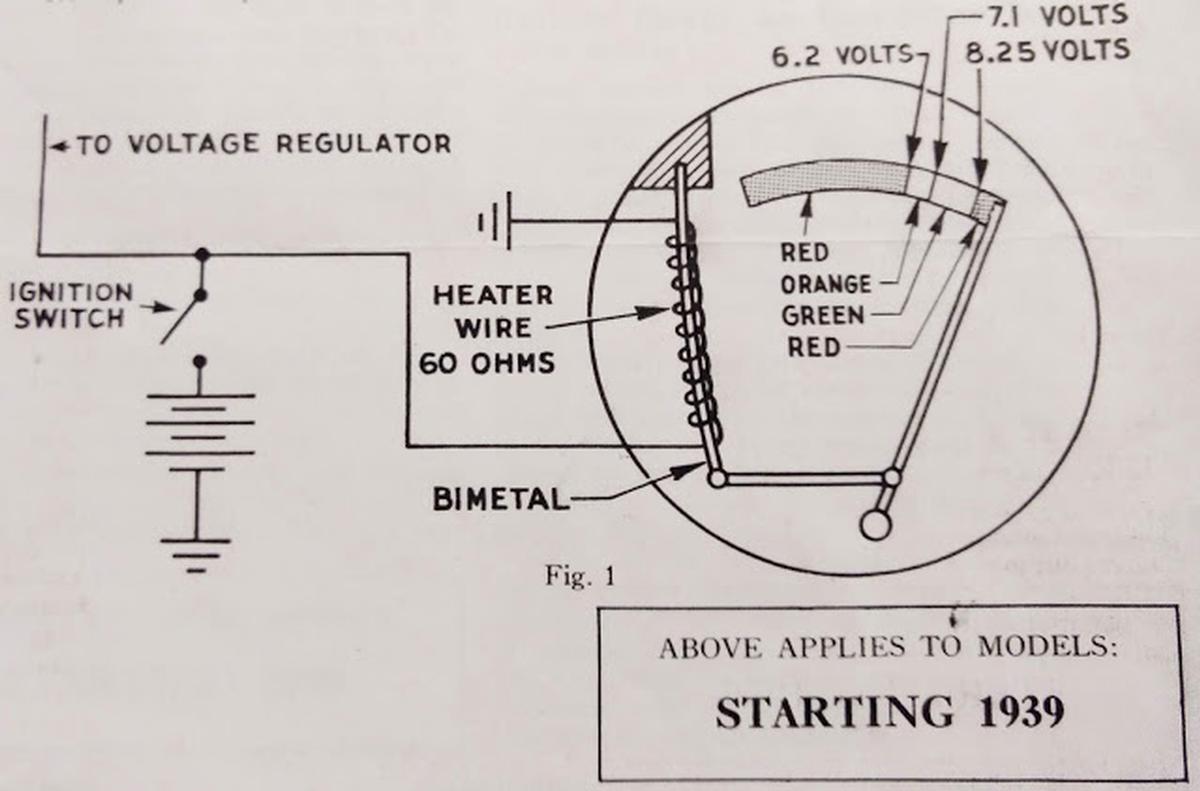

Wanted to give an update on the battery gauge problem.After changing all those nasty cables the problem is solved.At 55-60mph the needle registers in the green area now!I am going to sent a used coil that loses fire when trying to crank hot to Skip for rebuild.I found this diagram on the battery gauge-not sure if it is accurate or not?

fortyford

06-25-2019 @ 4:01 PM

reply profile send p.m.

Member
Posts: 206
Joined: Nov 2009

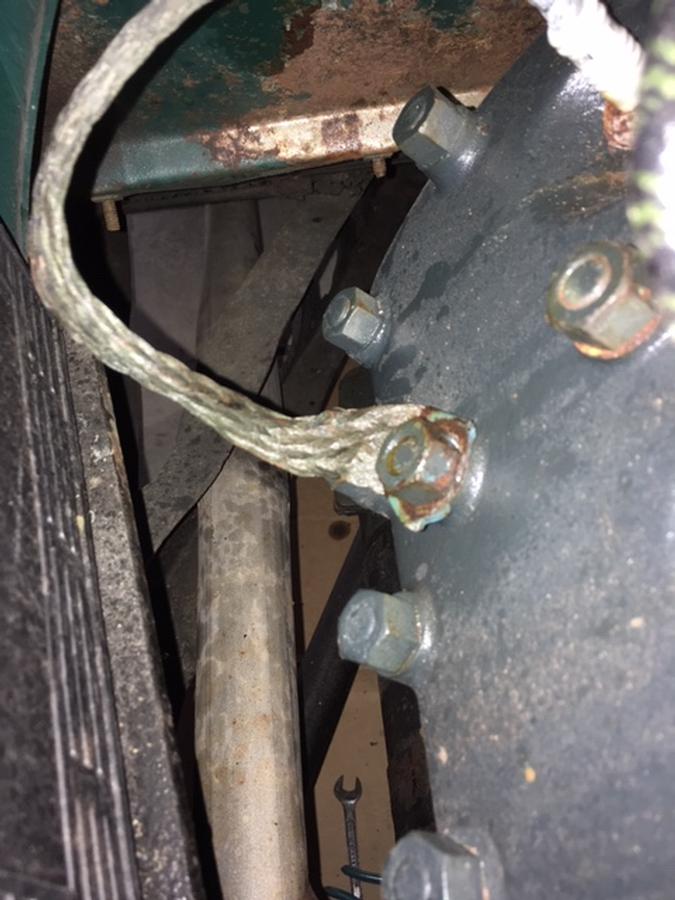

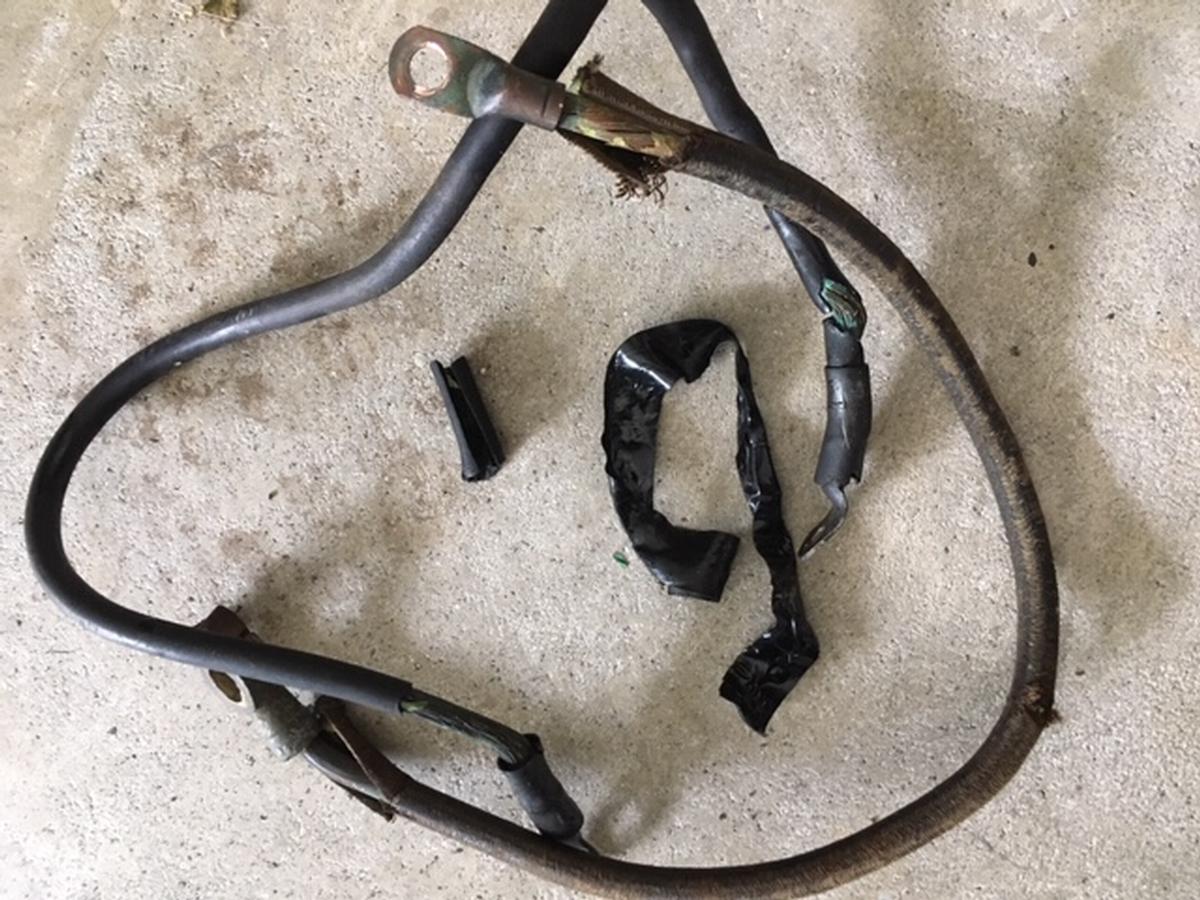

Well I pulled the battery cables off today and I am actually embarassed!I know y'all like photos so here is two of the cables.I cut the insulation back so the ugly can be seen.I been driving this 40 for several years,put about 10,000 miles on it?I did not realize the cables were that bad!The ground from firewall to engine is mounted to head bolt.Is this the right place?Tom,I did remove the regulator and cleaned the paint off .Took the switch block off and cleaned it.Ordered new cables from Carpenters.

This message was edited by fortyford on 6-25-19 @ 4:10 PM

trjford8

06-25-2019 @ 7:00 AM

reply profile send p.m.

Senior
Posts: 4203
Joined: Oct 2009

If you have the old woven style ground straps they have a tendency to corrode causing poor grounding. If they are old or look old change them.

TomO

06-25-2019 @ 6:41 AM

reply profile send p.m.

Senior
Posts: 7244
Joined: Oct 2009

The readings you posted for the ground check, indicate a grounding problem with the regulator or generator. Clean some paint from the back of the generator mount and the mounting surface of the generator on the intake. Make sure that the grounding cables from battery to the firewall and from the firewall to the intake are in good condition and tight. I like to place a star washer under the firewall and intake connections.

It does sound like your ignition switch is worn. I would replace the Bakelite switch body and the brush.

You need to raise the RPMs to about 1,500. Pull your throttle out about 1/3 of its travel to check the charging system out put.

Tom

fortyford

06-24-2019 @ 12:48 PM

reply profile send p.m.

Member
Posts: 206
Joined: Nov 2009

Well they said the generator is working properly and I installed it back on and polarized the regulator(I did not know if I needed to or not?)Tom,I checked at the battery again at fast idle I am getting about 7.10 volts on the meter.I did try to check if I was doing it right the generator and the regulator base and I keep getting something like .15-.20 voltage???During all of this my car would not crank one time and discovered no fire to plug wires?I noticed with switch on my gauges were not moving so I tapped on switch block with screw driver and they started moving??I did clean the switch block a while back.Could it be worn out causing these problems?For some reason I got fire back and car is cranking again.

TomO

06-24-2019 @ 7:16 AM

reply profile send p.m.

Senior
Posts: 7244
Joined: Oct 2009

If your voltage is only getting up to 6.4V with the engine at around 1,500 RPMs, your voltage regulator is not working. Because you said that you have a new regulator, the first thing I would check is that it is grounded. The original regulator has a grounding strap between the lower right hand bolt and a tab that is connected to the base of the regulator. The aftermarket regulators ground through the screws holding the regulator to the firewall.

To use a meter to check grounding, connect the + lead of the meter to the generator through bolt and the COM meter lead to the regulator base. Set the meter to the lowest scale. With the engine running at 1,500 RPM, the volt meter should read zero V. If you have a reading , you will need to make sure that the generator is making good contact with the intake, the grounding strap from the intake to the firewall is making good contact and the regulator base to the firewall is making good contact.

Tom

fortyford

06-23-2019 @ 5:23 PM

reply profile send p.m.

Member
Posts: 206
Joined: Nov 2009

Thanks Steve,that is what I thought about the lights not getting brighter.I got the generator off and taking to shop tomorrow to get checked.It is really smooth when I rotate the pulley and the brushes appear to be good just looking through the slots.Does the stock generator just have two brushes?Thanks Tom,I don't think I ever seen the voltage get up 7 or so.The last time I checked that it seems like the voltage got up to like 6.41 with the engine reved?

This message was edited by fortyford on 6-23-19 @ 5:26 PM
