EFV-8 Club Forum / General Ford Discussion / 46 Ford Heater installation

   Reply to this DiscussionReply to Discussion | Start new discussionNew Discussion << previous || next >>
Posted By Discussion Topic: 46 Ford Heater installation -- page: 1 2

Printer-friendly Version  send this discussion to a friend  new posts last

FLTHDCPE
05-01-2016 @ 9:49 AM
Member
Posts: 24
Joined: Dec 2011

Can someone tell me the correct installation of the inlet vs. outlet of the hoses to the core. Does it make a difference which one goes where.? My heater connections are across from each other vs staggered or offset.
Thank you for your input.!

Thank You.!
Steve

len47merc
05-01-2016 @ 11:01 AM
Senior
Posts: 1165
Joined: Oct 2013

Heater hose from the large bottom passenger side radiator hose connects to the passenger side of the heater core at the firewall. Hose from the driver's side of the heater goes from the heater toward the radiator on top of the motor beside the carb then makes a hard right to the passenger side across the intake manifold in front of the carb and connects to the heater shut-off valve. Hopefully this addresses your question - perhaps have misinterpreted you though (?).

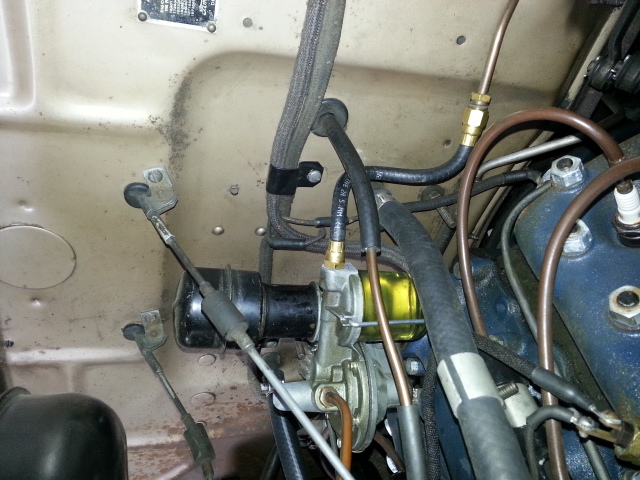

See the attached pic of my very early '47's (basically a '46 that finished assembly in Jan, '47) firewall to see if this matches your orientation. The passenger side hose is visible as well if you look closely. I've never seen a '46-'48 heater with a different inlet/outlet orientation than this, but perhaps they exist. A pic of yours if different from that shown in the attached pic would be helpful. Good luck -

Steve

This message was edited by len47merc on 5-1-16 @ 11:02 AM

woodiewagon46
05-01-2016 @ 11:04 AM
Senior
Posts: 696
Joined: Nov 2012

Here's what the '41 thru '48 Ford Book offered by the V-8 club has to say. "Through the 1946 model year the location for the heater inlet hose connection was found on the firewall approximately behind and slightly left of the V-8 fuel pump stand". "The heater outlet connection is higher on the firewall and approximately 9" to the right of the inlet connection, and remained there throughout the 1941-1948 period". Hope this is helpful for you.

fla48
05-01-2016 @ 11:58 AM
New Member
Posts: 128
Joined: Nov 2011

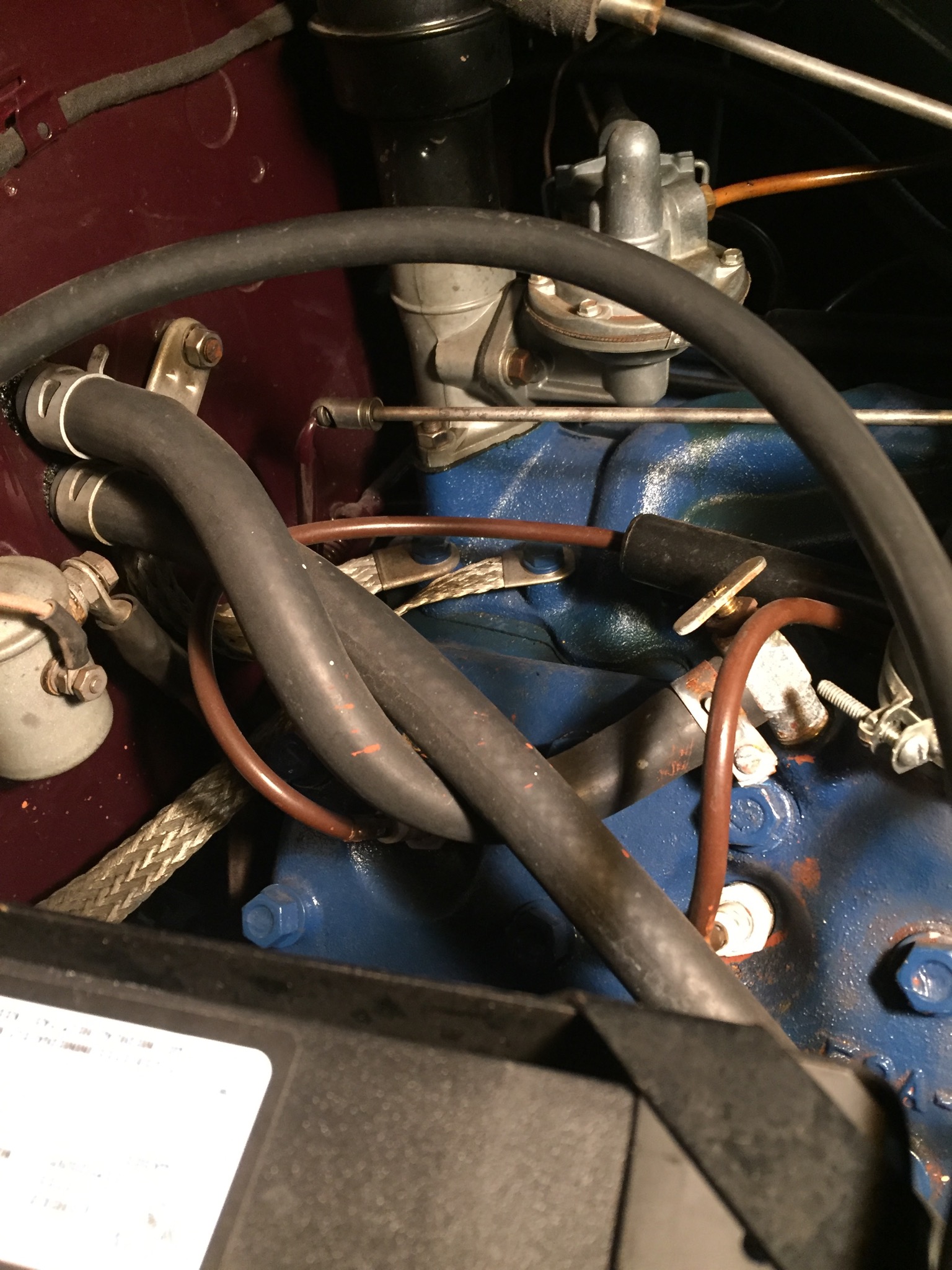

This is the setup on my 48. There are two types of hearers. One is fresh air, the
other recirculates air. This is for the recirculating air heater. The top hose connects to the cylinder head outlet, the bottom hose to the bottom radiator hose.


fla48
05-01-2016 @ 11:58 AM
New Member
Posts: 128
Joined: Nov 2011

This is the setup on my 48. There are two types of hearers. One is fresh air, the
other recirculates air. This is for the recirculating air heater. The top hose connects to the cylinder head outlet, the bottom hose to the bottom radiator hose.


len47merc
05-01-2016 @ 12:04 PM
Senior
Posts: 1165
Joined: Oct 2013

FLTHDCPE - given woodiewagon46's and my earlier replies, as well as your description of the heater you have, how confident are you your heater is the correct one for your '46? Was it removed from your car or do you know? Or by your description of 'My heater connections are across from each other vs staggered or offset' is your heater similar to fla48's? Post some pics of the front and back of what you have if you can - it may better help us answer your original question. Thanks -

Steve

This message was edited by len47merc on 5-1-16 @ 12:08 PM

FLTHDCPE
05-01-2016 @ 8:03 PM
Member
Posts: 24
Joined: Dec 2011

Appreciate the reply's and pic's from all. Obliviously a better description along with some pictures would help. Pictures are in the works. This is not the original heater. I was told that it came out of a 46 Ford F-1 pickup, not sure that this makes any difference. Understanding that all heaters were a Dealer installed option, I' am sure that there were several different models as well as configurations of these. This heater was made by the "Eaton" Corp for Ford. I have installed more than one original heater in 40 thru 48 Fords and the question always comes up,"which hose goes where.?"or does it make any difference? That's what started this inquiry. Even my local radiator shop asked the same question.( not familiar with old Fords) ! I have experienced "no heat" in previous installations either due to improper hose routing or an airloc, so I thought I'd put this out there and find out from the experts. I appreciate you sharing this info. that's how we learn to work on these "Ole Fords".

Thank You.!
Steve

woodiewagon46
05-02-2016 @ 8:56 AM
Senior
Posts: 696
Joined: Nov 2012

That changes everything. Your original post did not tell us that the heater was from a F 100 pick up. Can't help with pictures from members original car's and quotes from the V-8 book.

len47merc
05-02-2016 @ 11:41 AM
Senior
Posts: 1165
Joined: Oct 2013

I just had that feelin' woodiewagon46, hence why the addl' probing but non-assuming question.

FLTHDCPE - sorry, cannot help you at this point. Perhaps someone with truck experience can steer you in the right direction. Good luck -

Steve

Old Henry
05-02-2016 @ 2:10 PM
Senior
Posts: 738
Joined: Apr 2010

I, for one, can't imagine why it would make any difference which direction the water flows through a heater core. I've run mine both directions and it doesn't make any difference.
